Electronic Throttle Actuator: Service and Repair

Removal

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2. Remove the resonator and the air intake hose .

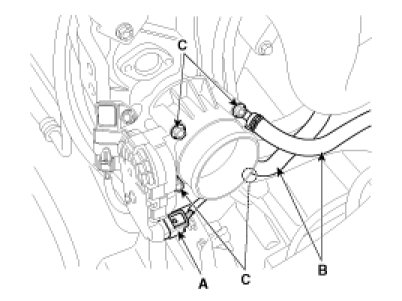

3. Disconnect the ETC module connector (A).
4. Disconnect the coolant hoses (B).
5. Remove the installation bolts (C), and then remove the ETC module from the engine.






Installation

CAUTION:
- Install the component with the specified torques.
- Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.

1. Installation is reverse of removal.

Electronic throttle body Installation bolt:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
