Sonata GLS, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (Fuel System (G4KE - GSL 2.4))
>>
Accelerator Position Sensor (APS)
>>
Circuit diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit diagram

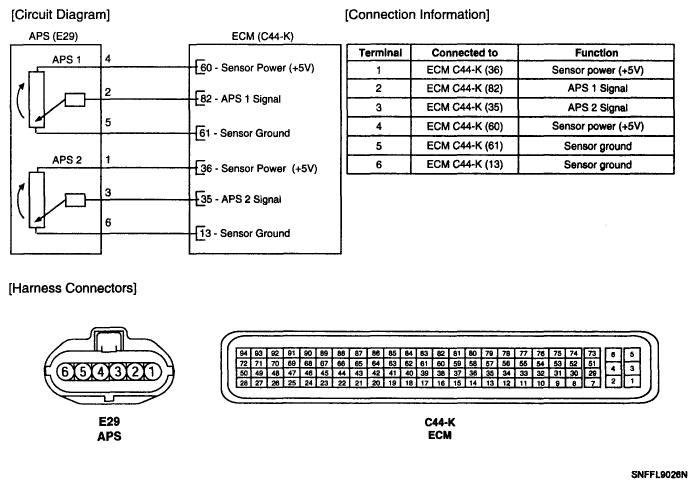

Fig 1: APS And ECM Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
