Power Window Switch





Components

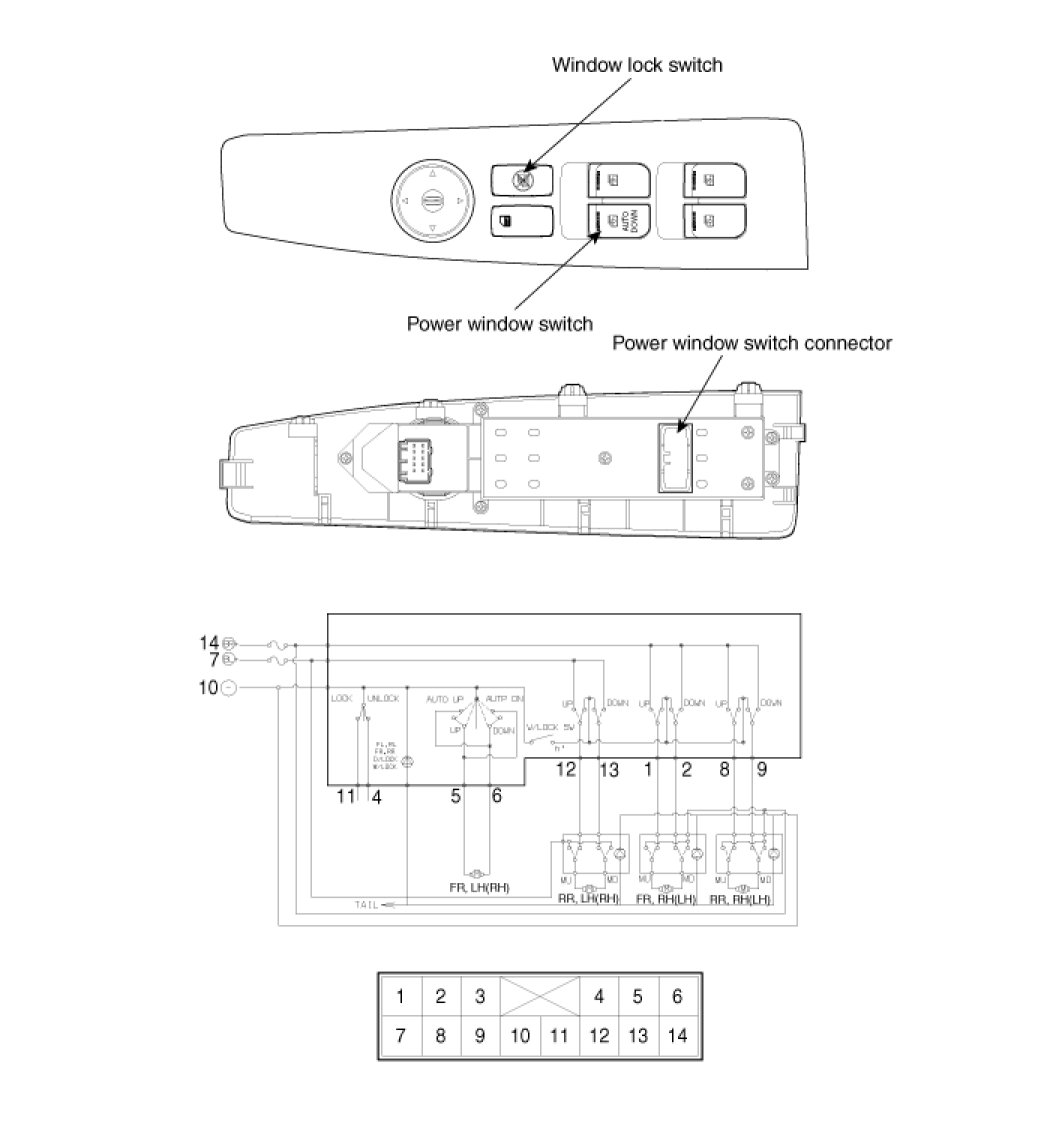

Power Window Main Switch

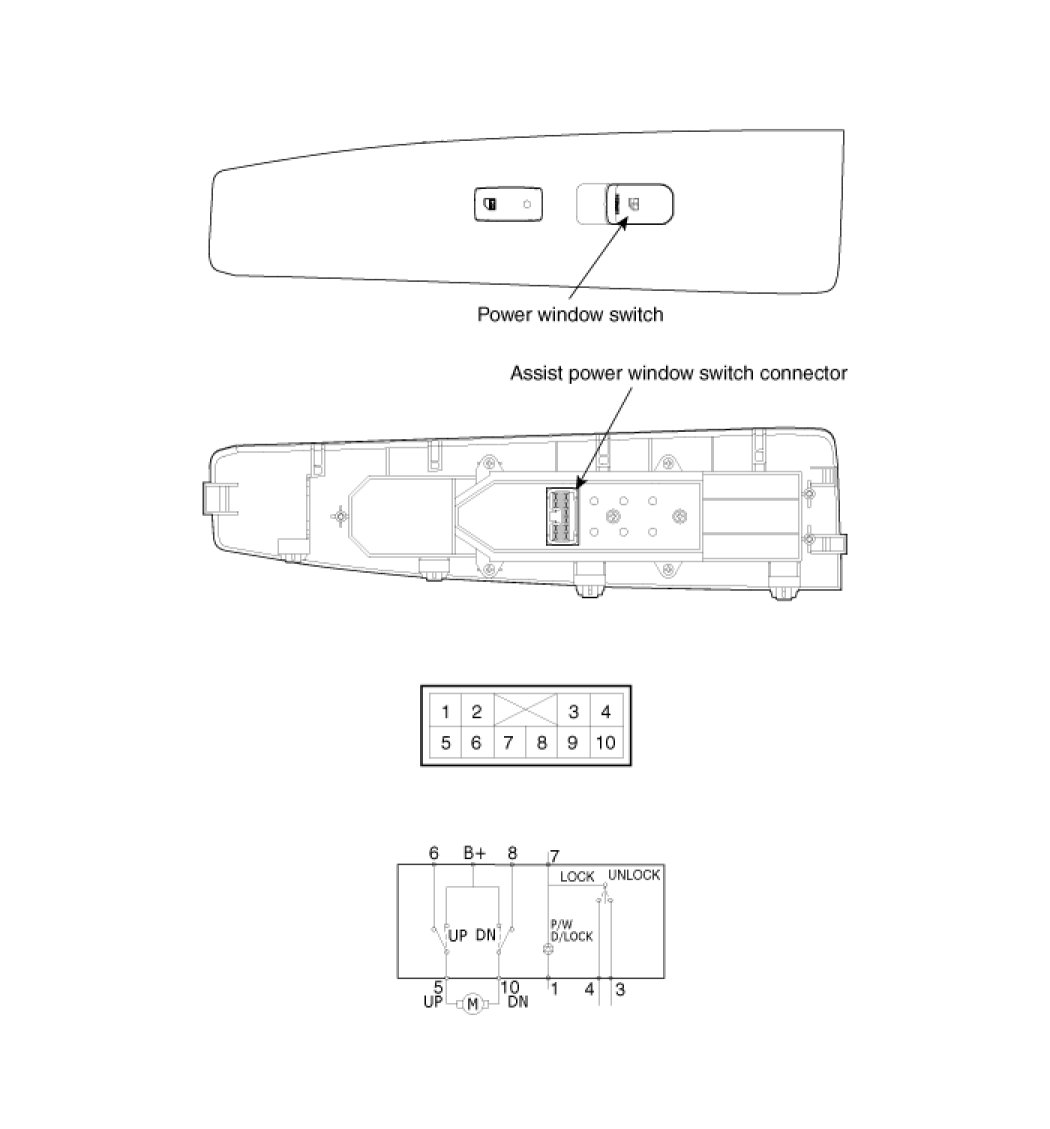

Assist Power Window Switch

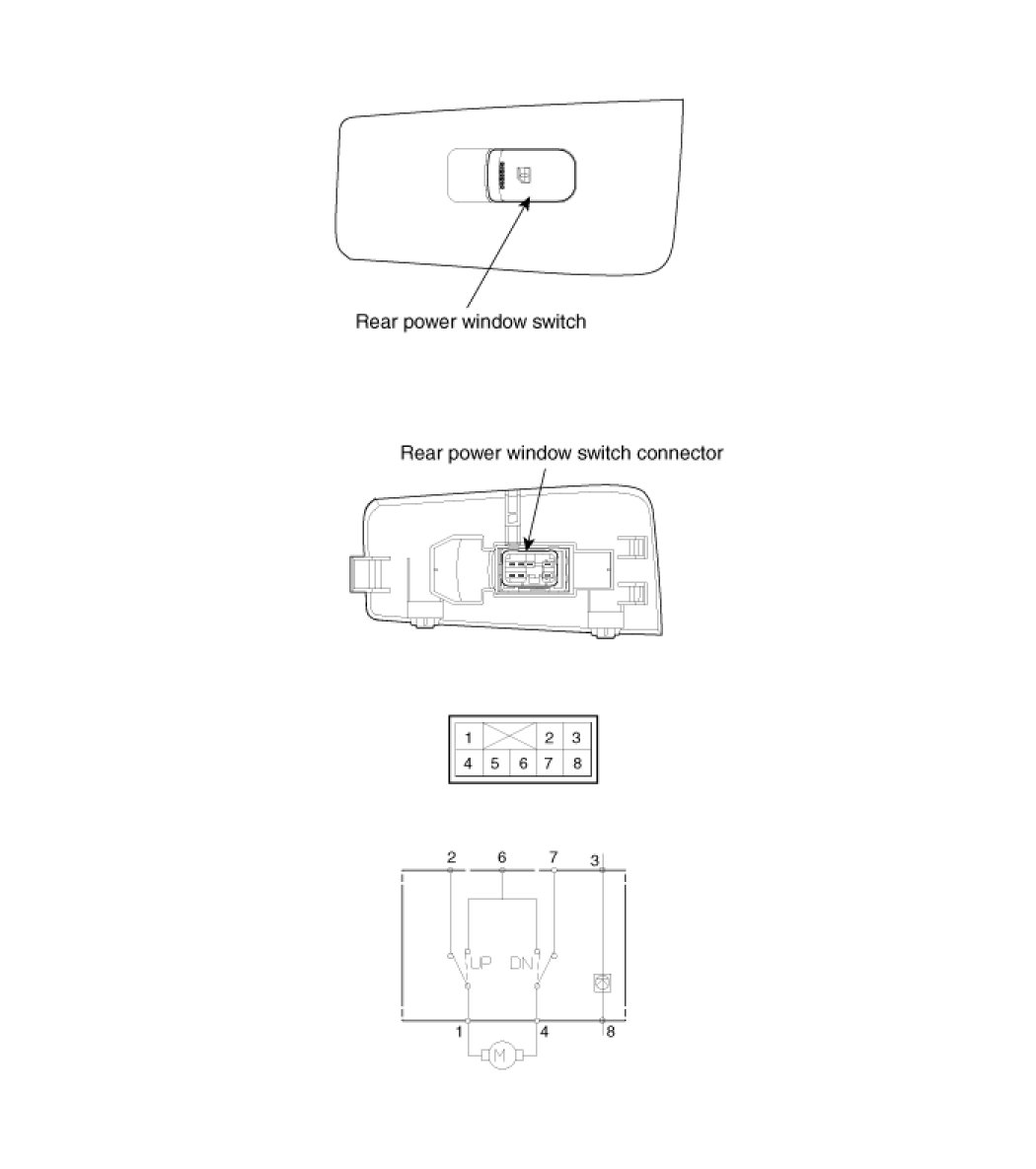

Rear Power Window Switch
