Transmission Position Sensor/Switch: Description and Operation

Description

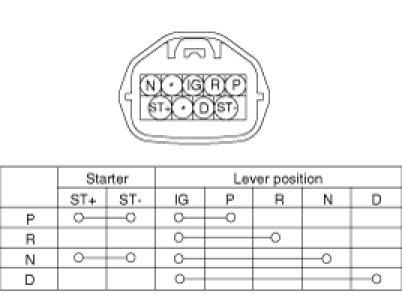

NSW transmits the information which range includes shift lever of A/T to TCU by combination of a position circuit terminal.
- 1 It is possible for NSW to start an engine in only "P" and "N".
(Prevention of reckless driving)
- 2 It is used for NSW to shift control.
