Scan Tool Testing and Procedures





Inspection

IMS Mode Setting With Scan Tool
1. You can turn ON/OFF of IMS tilt & telescope control option with the user option program.

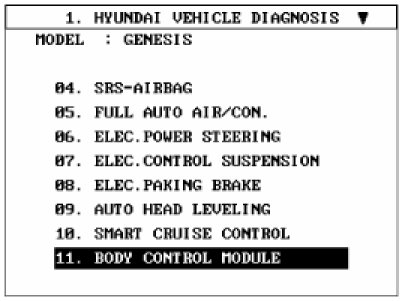

2. Select model and "body control module" menu.

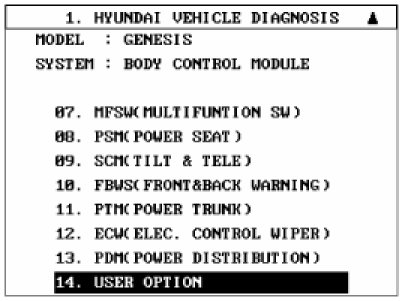

3. Select the "user option".

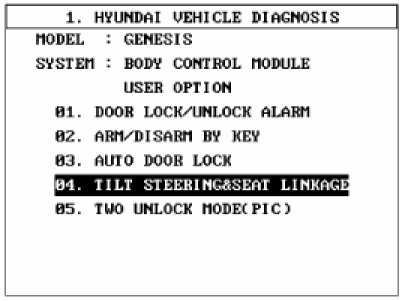

4. Select the "Tilt steering & seat linkage".




5. Select the On/Off option of IMS tilt & telescope control.
A. Seat installation state ON/OFF
B. Seat riding & getting off gearing ON/OFF
C. Column installation state ON/OFF
D. Column riding & getting off gearing ON/OFF
