Window Track: Service and Repair





Replacements

Channel Replacement
1. Remove the following parts.
A. Door trim
B. Window glass
C. Door module

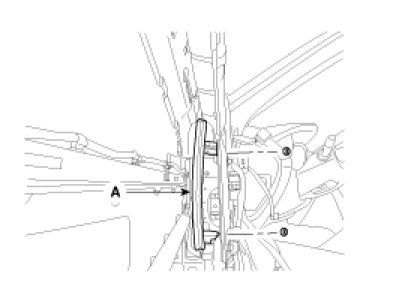

2. After loosening the mounting nuts, remove the door channel (A).




3. Installation is the reverse of removal.

NOTE:
- Make sure the door opens properly and locks securely.
