System Specifications

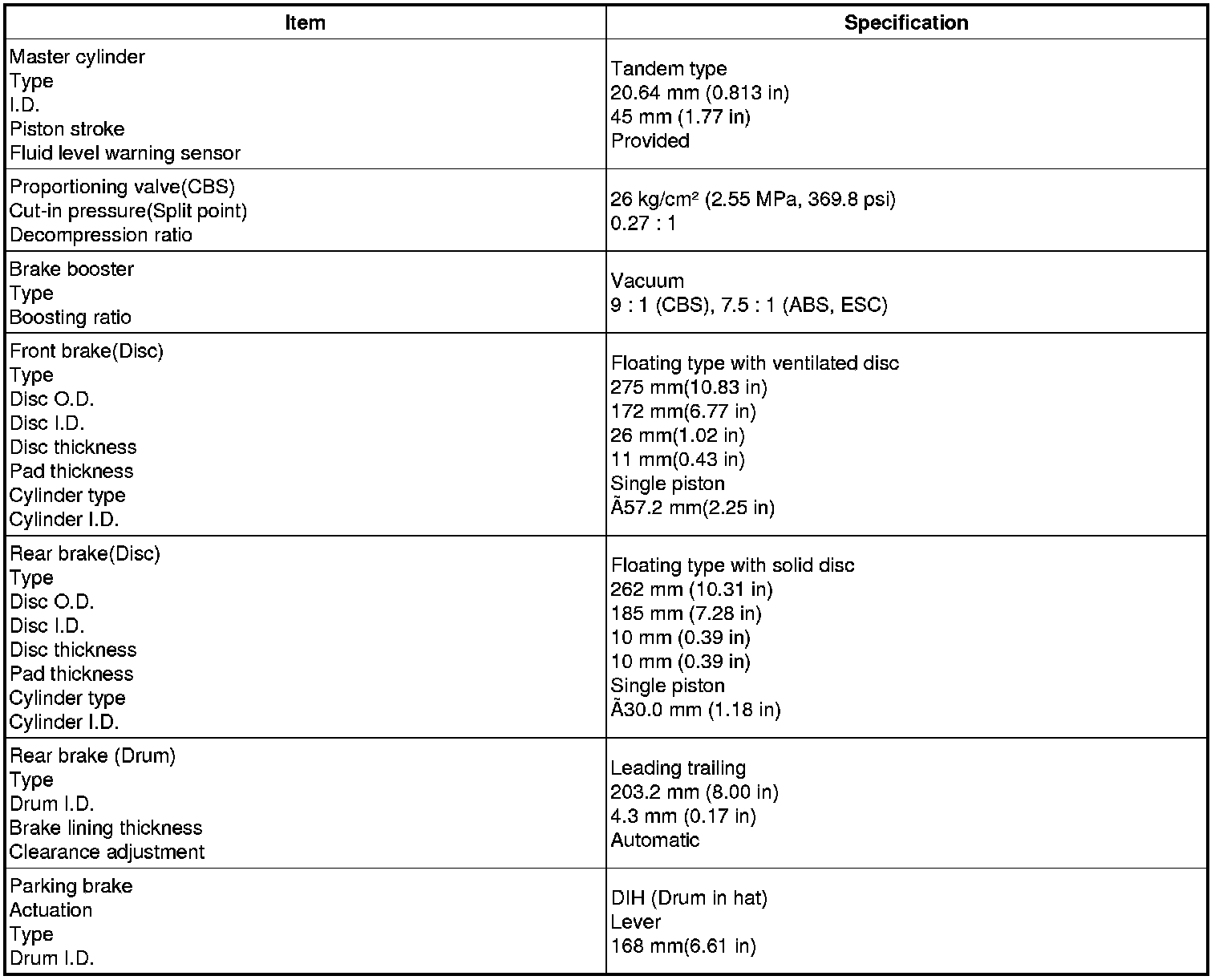

Specifications





NOTE:
ABS : Anti-lock Brake System
CBS : Conventional Brake System
ESC : Electronic Stability Control system

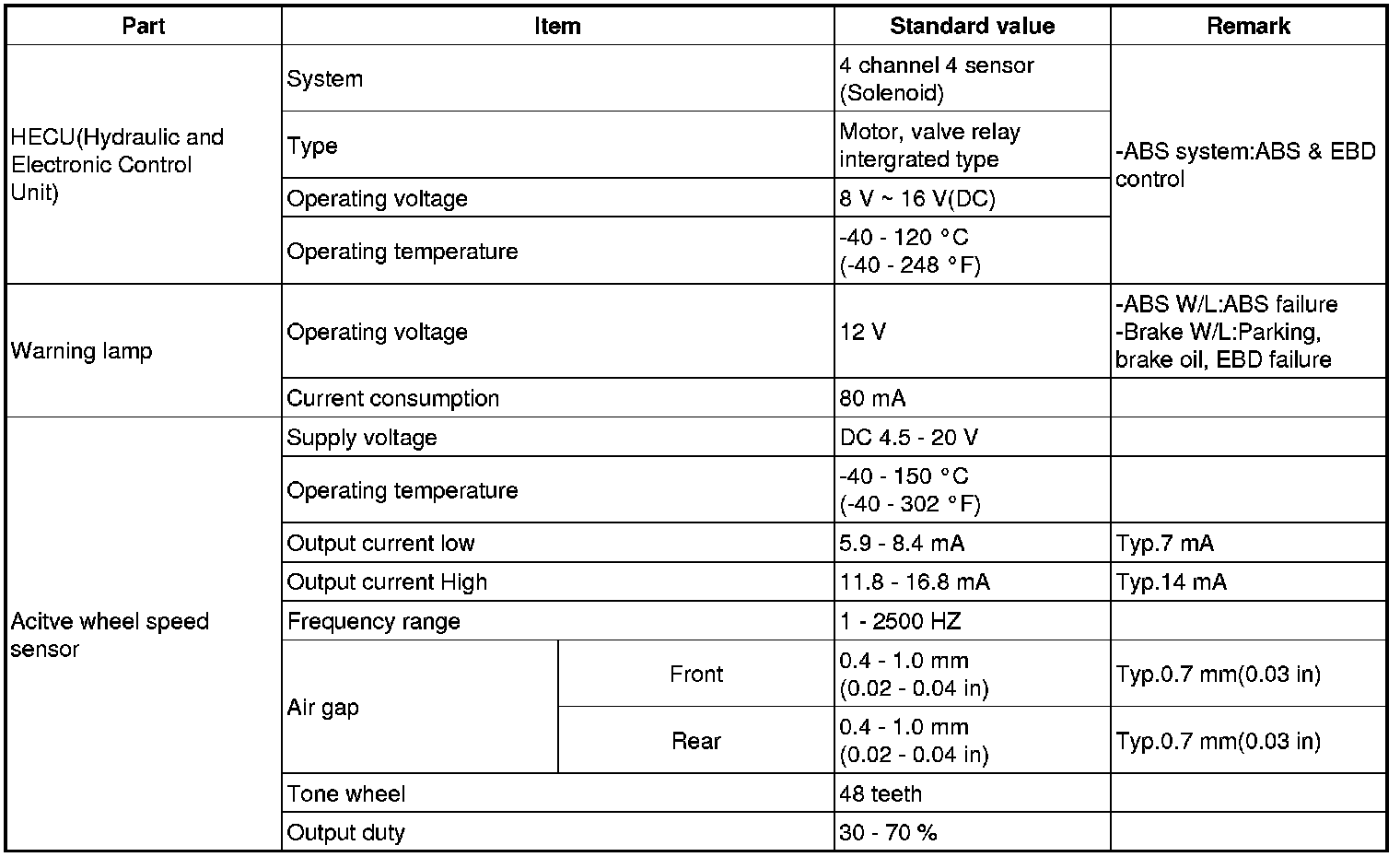

Specification (ABS)

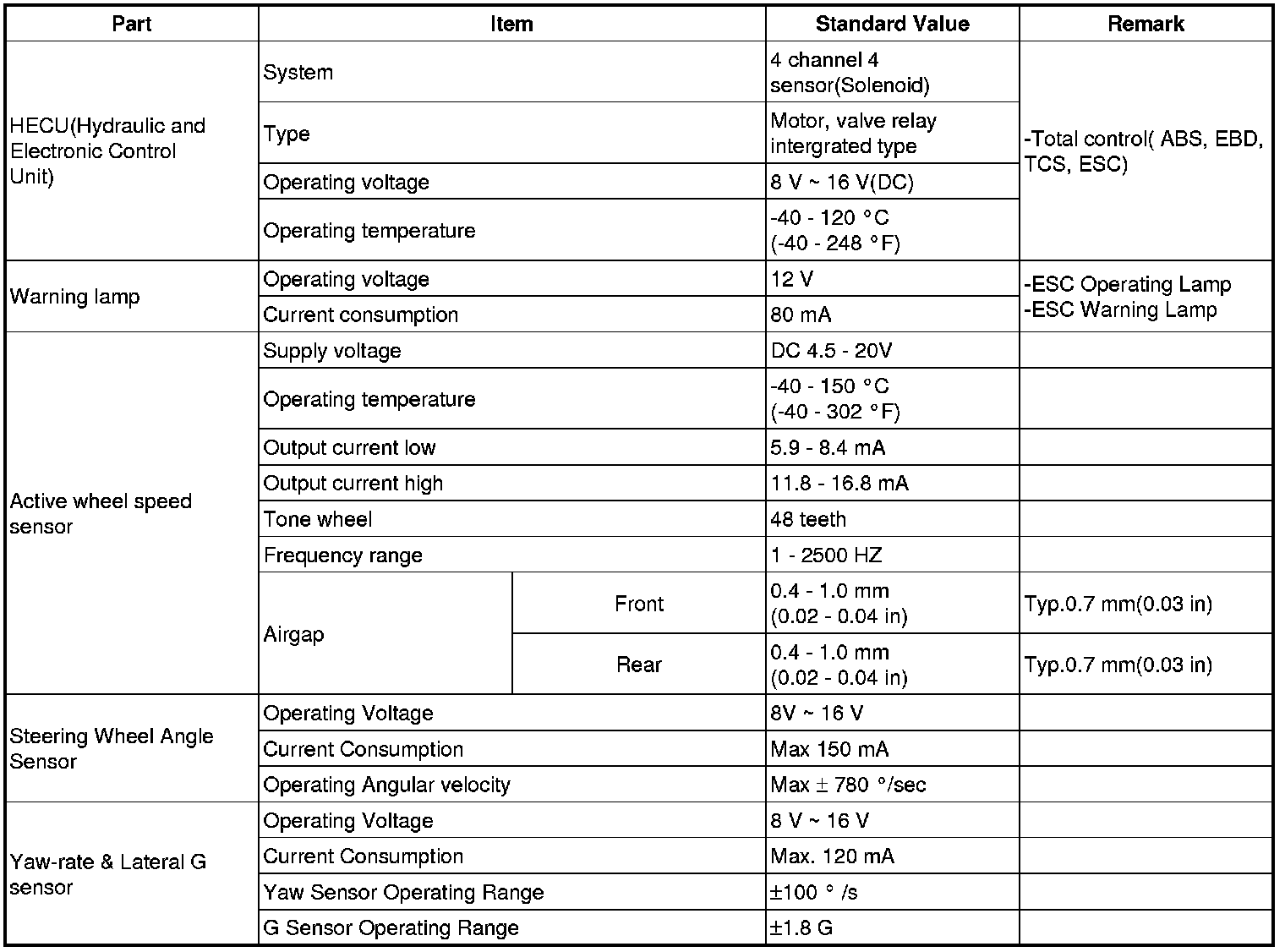

Specification(ESC)






Service Standard

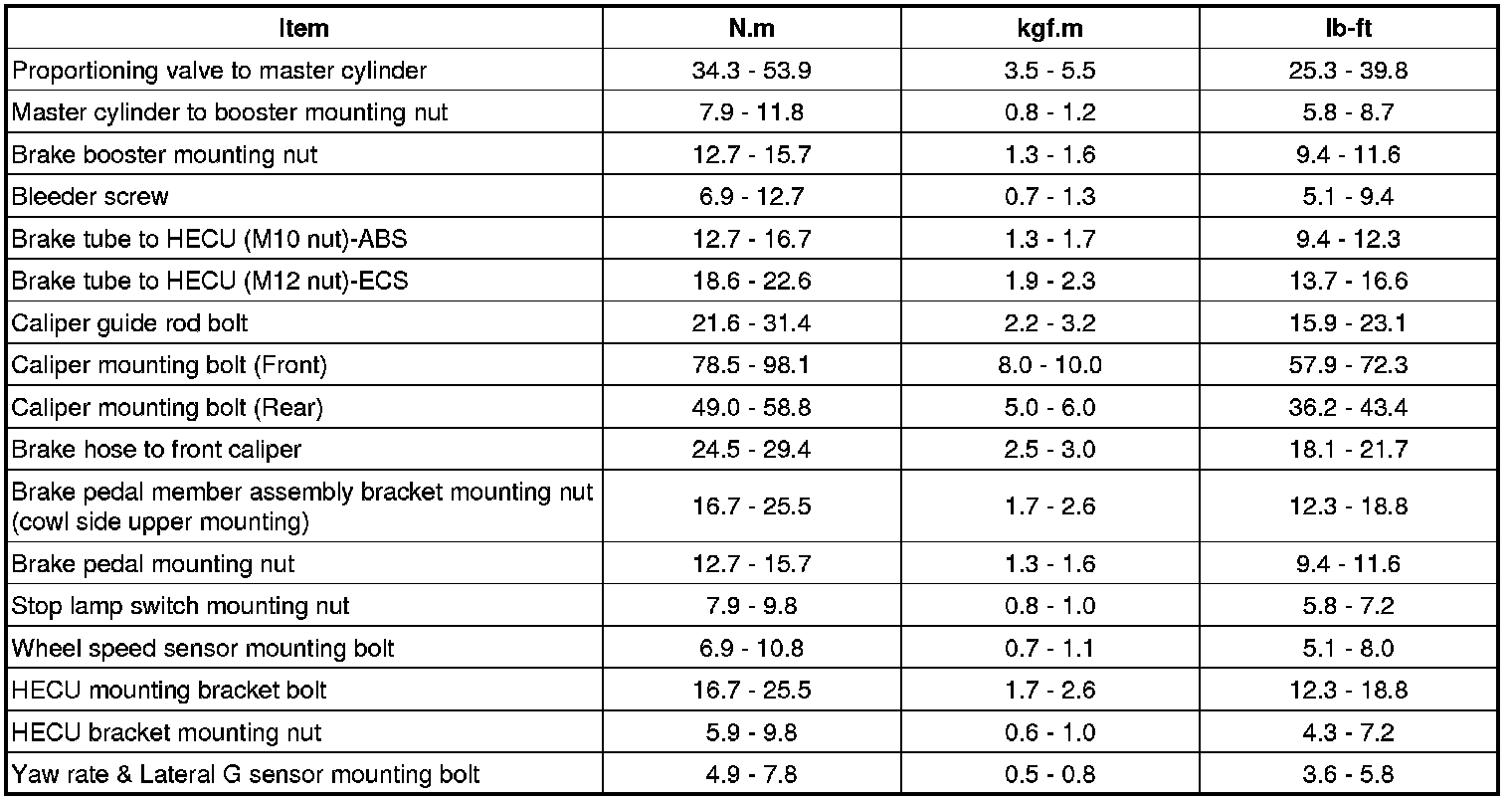

Tightening Torques






Lubricant
