Cabin Temperature Sensor / Switch: Service and Repair

Replacement

1. Disconnect the negative (-) battery terminal.

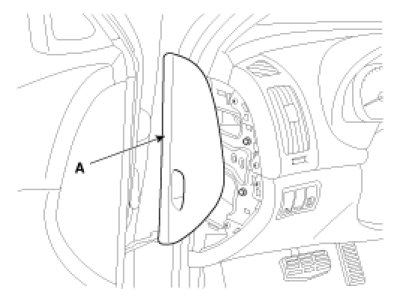

2. Remove the crash pad side cover (A).

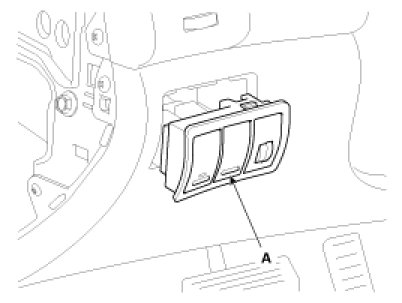

3. Remove the switch assembly (A).

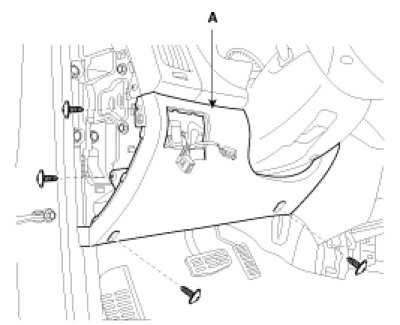

4. After loosening the crash pad lower panel mounting screw, then remove the lower panel (A).

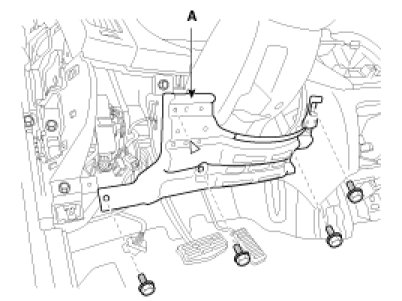

5. Remove the reinforcing panel (A).

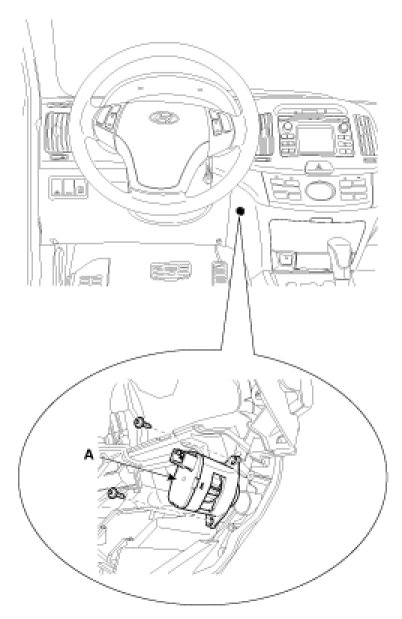

6. Disconnect the connector of in-car sensor.Loosen the mounting 2 screws and then remove the in-car sensor (A).




7. Installation is the reverse order of removal.
