Components and Components Location: Components

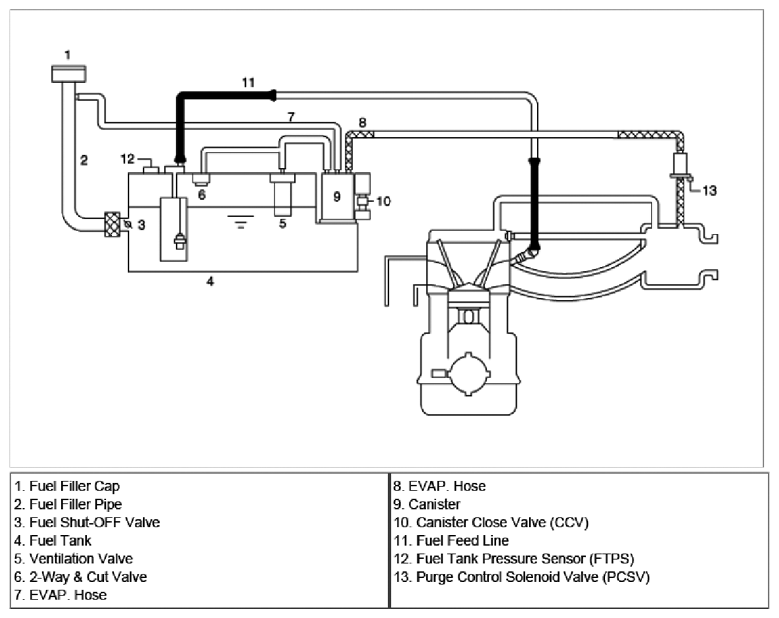

Fig 1: Evaporative Emission Control System Diagram
G06804998Courtesy of HYUNDAI MOTOR CO.
