Schematic Diagram

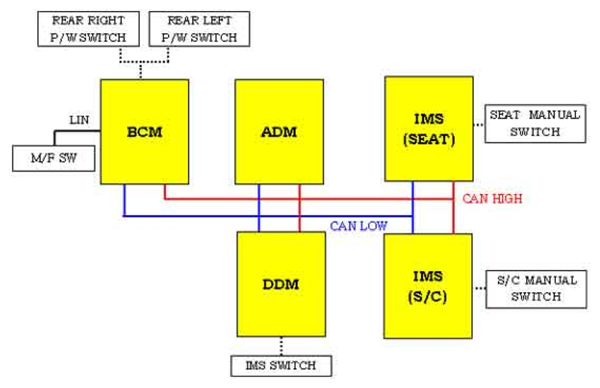

Fig 1: Communication Diagram - Power Seat Module

Courtesy of HYUNDAI MOTOR CO.

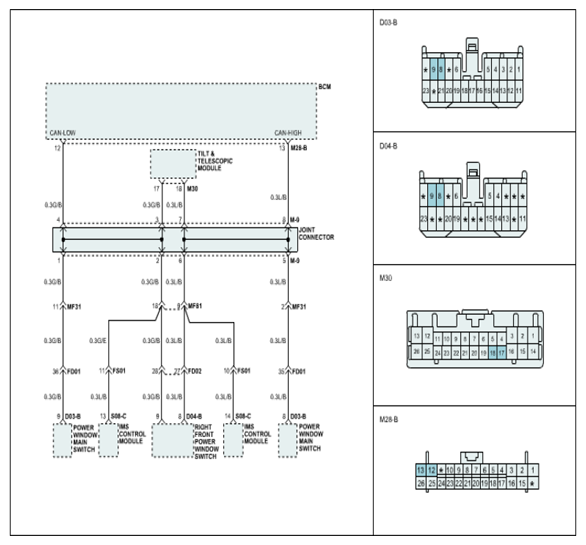

Fig 2: Schematic Diagram - Power Seat Module

Courtesy of HYUNDAI MOTOR CO.

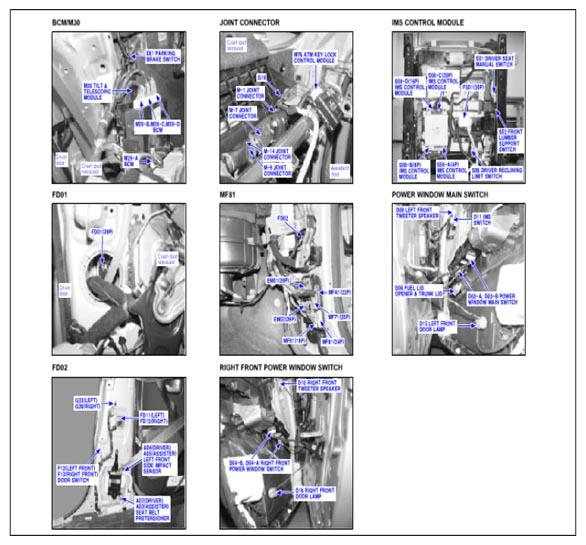

Fig 3: Identifying Power Window Main Switch Connectors

Courtesy of HYUNDAI MOTOR CO.
