Schematic Diagram

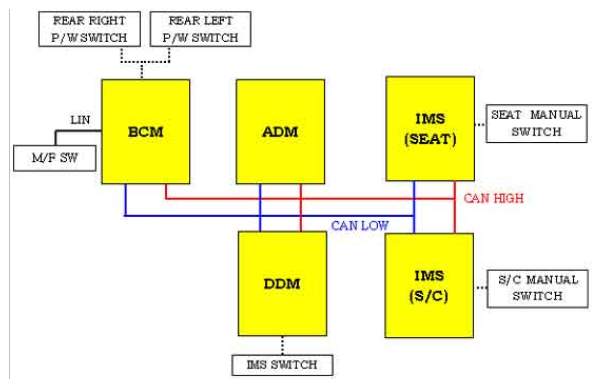

Fig 1: Communication Diagram - Body Control Module

Courtesy of HYUNDAI MOTOR CO.

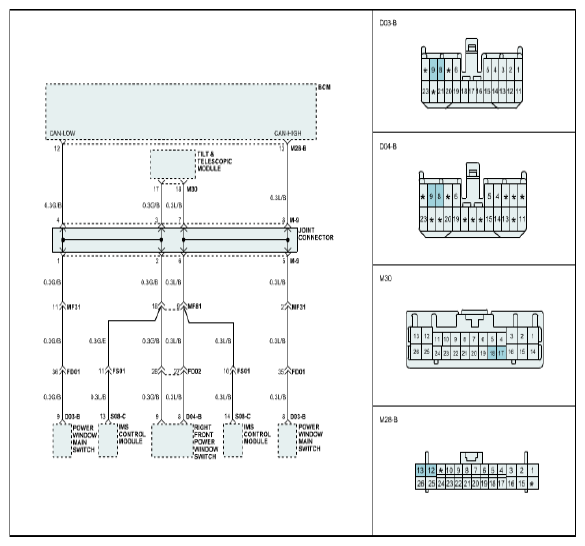

Fig 2: Schematic Diagram - Body Control Module

Courtesy of HYUNDAI MOTOR CO.

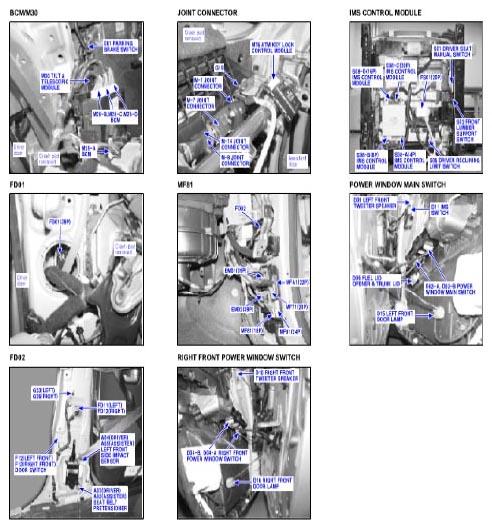

Fig 3: Identifying POWER WINDOW MAIN SWITCH Connectors

Courtesy of HYUNDAI MOTOR CO.
