Repair Procedures

Replacement

1. Disconnect the negative (-) battery terminal.

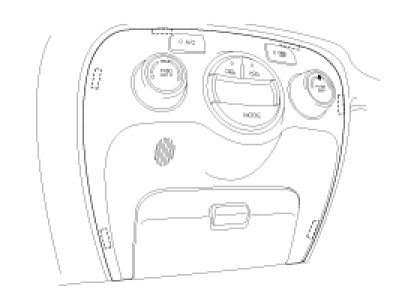

2. Remove the center facia lower panel.

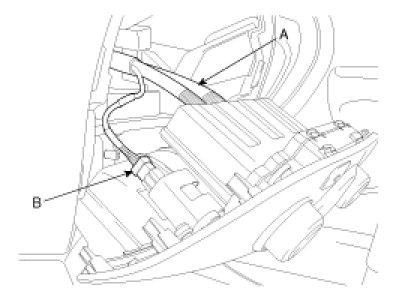

3. Remove the controller connector(A), incar sensor connector(B).

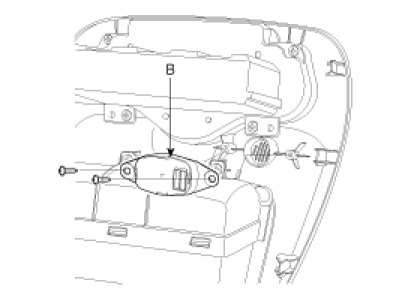

4. Loosen the mounting 2 screws and then remove the in-car sensor (B).




5. Installation is the reverse order of removal.
