Transfer Case: Components

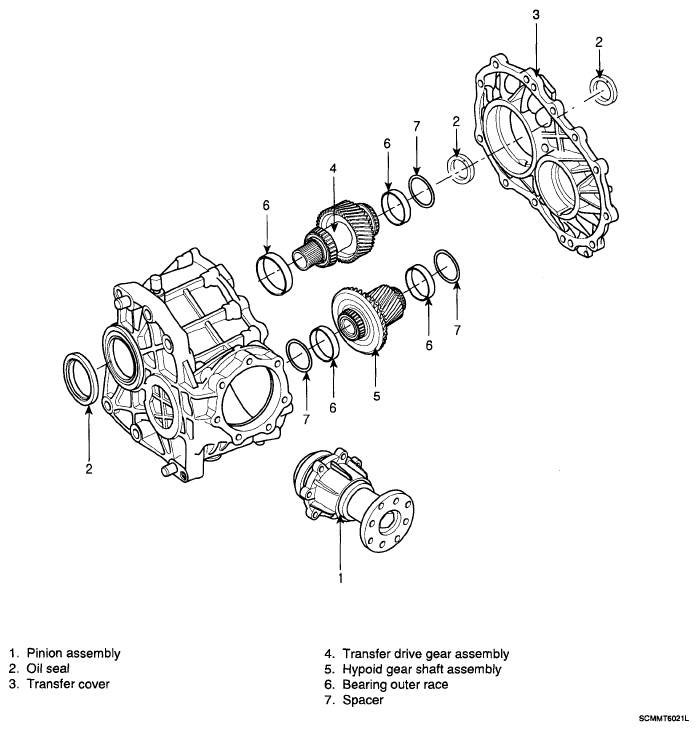

Fig 1: Identifying Transfer Case Components

G05330449

Courtesy of HYUNDAI MOTOR CO.
