Hyundai
>>
2009
>>
Veracruz GLS, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (Fuel System) (G6DA - GSL 3.8)
>>
Gasoline Engine Control System
>>
Manifold Absolute Pressure Sensor (Maps)
>>
Inspection
>>
Schematic Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Schematic Diagram

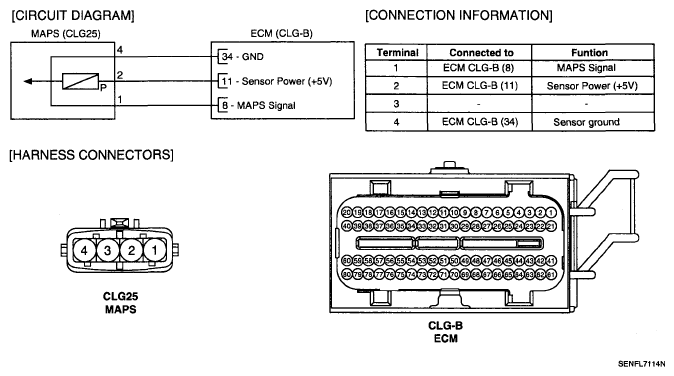

Fig 1: Manifold Absolute Pressure Sensor (MAPS) - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
