Engine Control System (Fuel System) (G6DA - GSL 3.8)
>>
Gasoline Engine Control System
>>
CVVT Oil Temperature Sensor (OTS)
>>
Inspection
>>
Schematic Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Schematic Diagram

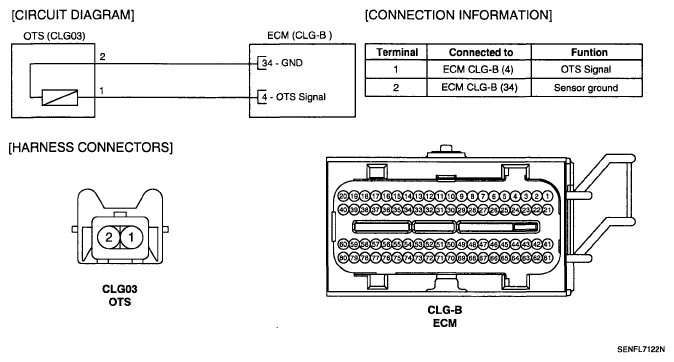

Fig 1: CVVT Oil Temperature Sensor (OTS) - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
