Climate Control Exhaust Gas Sensor: Service and Repair





Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the front bumper .

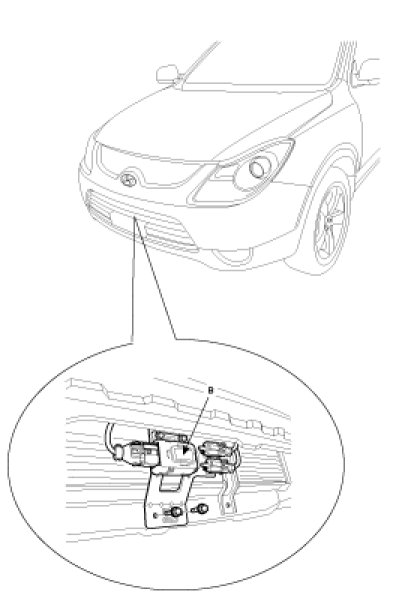

3. Remove the AQS (B) after loosening the mounting bolts.




4. Installation is the reverse order of removal.
