Alarm Module: Service and Repair





Removal

1. Disconnect the negative (-) battery terminal.

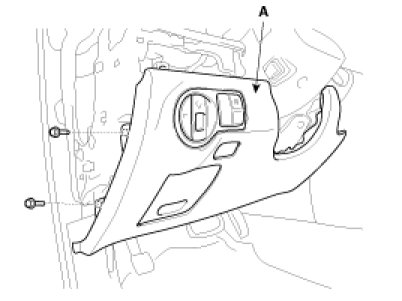

2. Remove the crash pad lower panel(A) after removing side cover. .

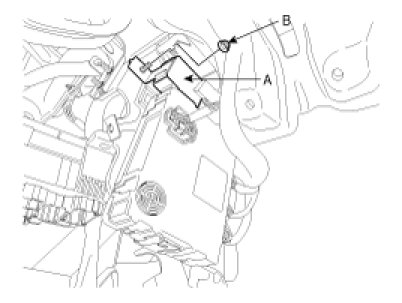

3. Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) mounted on the left side cowl cross bar. after loosening a shear bolt (B).






Installation

1. Reassemble the SMARTRA unit after connecting the connector.
2. Reassemble the driver crash pad lower panel.
