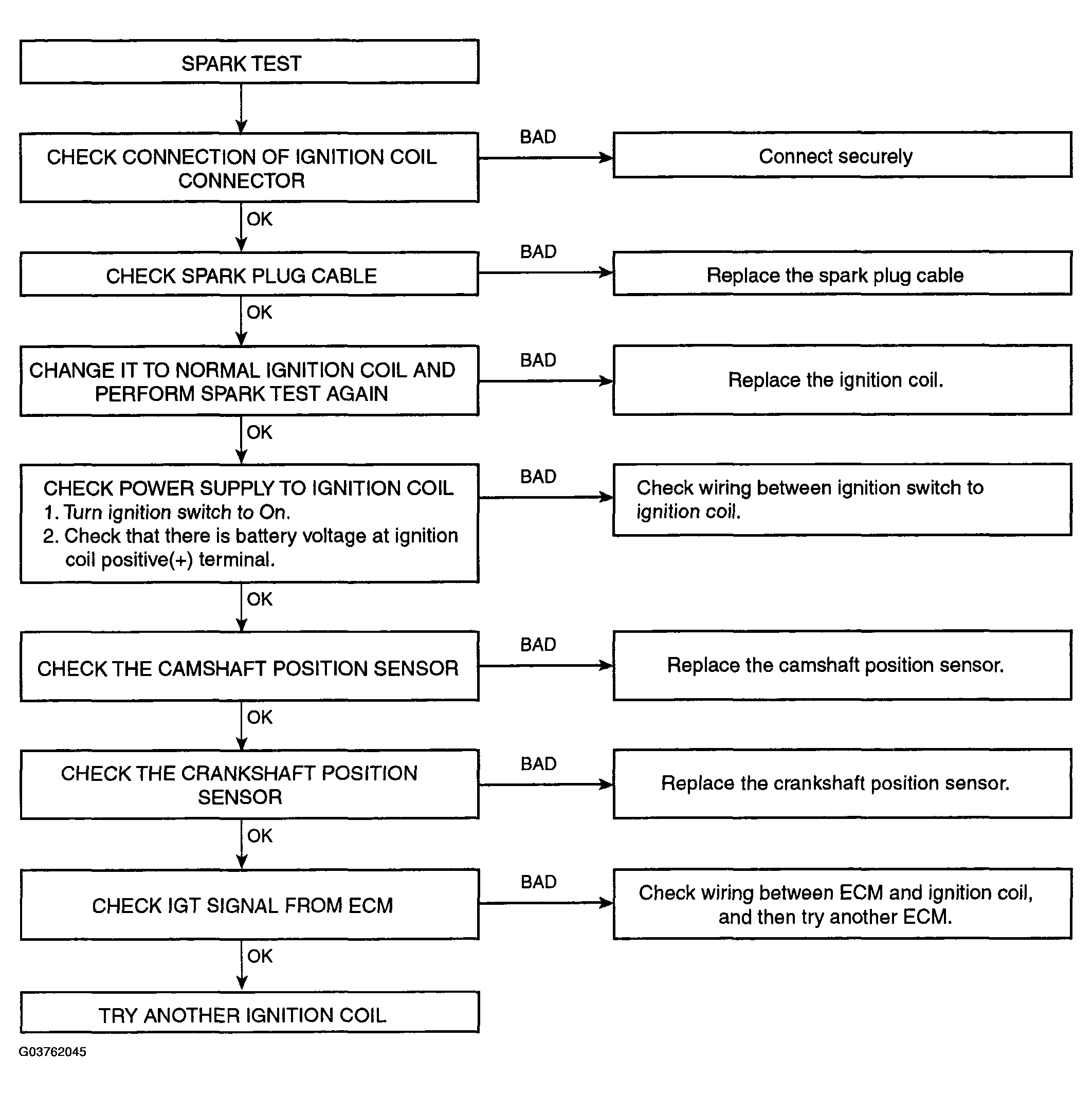

Inspect Spark Test: Notes
- Remove the spark plug cable.
- Using a spark plug socket, remove the spark plug.
- Remove the ignition coil.
- Install the spark plugs to each spark plug cable.
- Ground the spark plugs.
- Check is spark occurs while engine is being cranked.
NOTE:
To prevent gasoline from being injected from injectors during this test, crank the engine for no more then 5-10 seconds at time.
Courtesy of HYUNDAI MOTOR CO.
- Using a spark plug socket, install the spark plugs.
- Install the spark plug cable and ignition coil.
