Camshaft Bearing Cap

Camshaft Bearing Cap

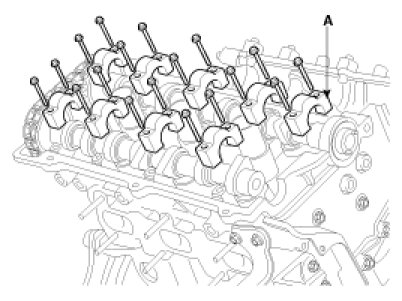

Install the camshaft bearing caps(A)
Tightening torque
M6 (38 mm) 10 - 12 Nm (1.0 - 1.2 kgf.m, 7 - 9 lb-ft)
M6 (50 mm) 14 - 16 Nm (1.4 - 1.6 kgf.m, 10 - 12 lb-ft)
