Ignition Switch: Testing and Inspection

Inspection

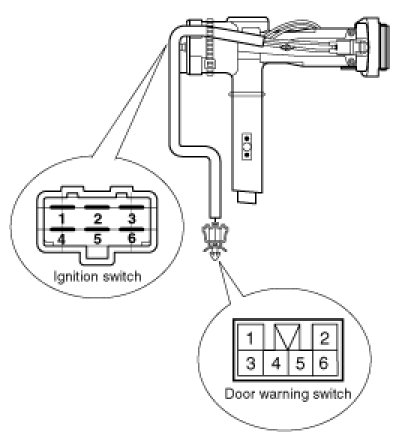

1. Disconnect the ignition switch connector(6P) and the door warning switch connector(6P) under the steering column.

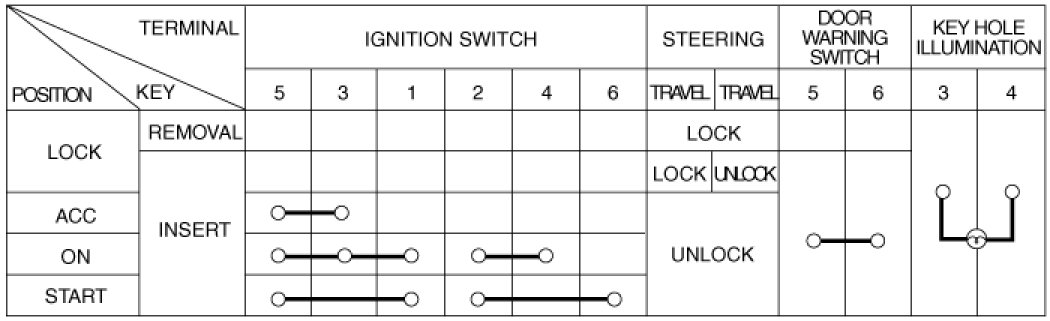

2. Check for continuity between the terminals.
3. If continuity is not as specified, replace the switch.
