Oil Pan, Engine

Oil Pan

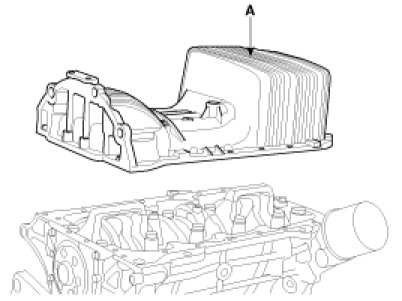

Install the oil pan(A) with the 19 bolts.
Uniformly tighten the bolts in several passes.

Tightening torque 10 - 12 Nm (1.0 - 1.2 kgf.m, 7.3 - 8.8 lb-ft)
