Ignition System: Service and Repair

Replacement

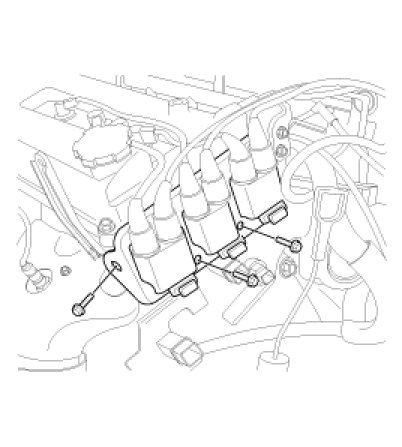

1. Remove the engine cover.
2. Disconnect the spark plug cable and connector.

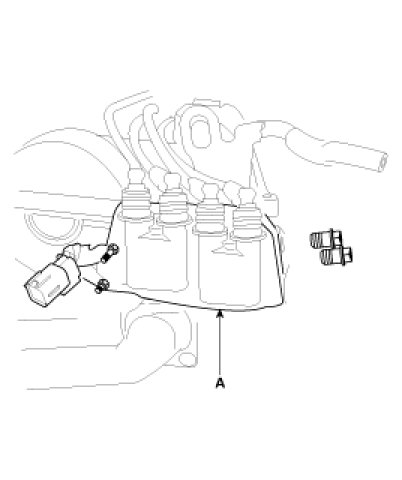

3. Remove the ignition coil(A).
4. Installation is the reverse of removal.
