Transmission Position Sensor/Switch: Description and Operation





Description

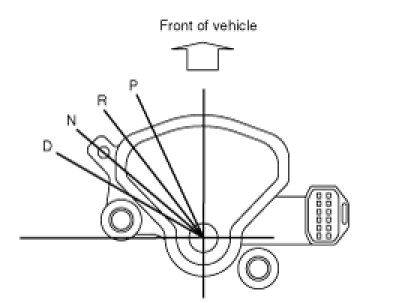

Inhibitor Switch
- Type: Rotary contact type
- Range of temperature : -40°C~145°C(-40°F - 293°F)

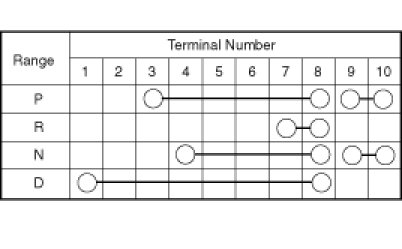

Inhibitor Switch - Continuity check(Sports mode)
