Oil Pump





Oil Pump

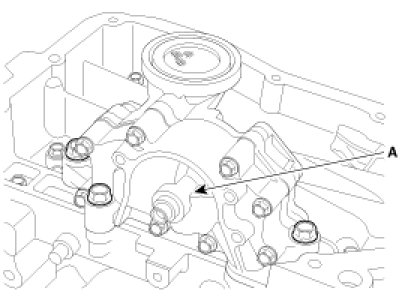

Install oil pump(A)
Tightening torque 19.60 - 23.52 N.m (2.0 - 2.4 kgf.m, 14.47 - 17.36 lb-ft)

NOTE: Always use a new O-ring.
