Water Pump

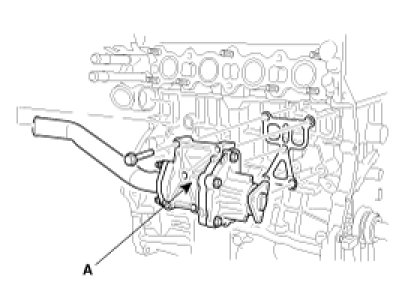

Install the water pump (A) with a new gasket
Tightening torque
18.6 - 23.5N.m (1.9 - 2.4kgf.m, 13.7 - 17.4lb-ft)
