Pinout Values and Diagnostic Parameters





Powertrain control module (PCM)

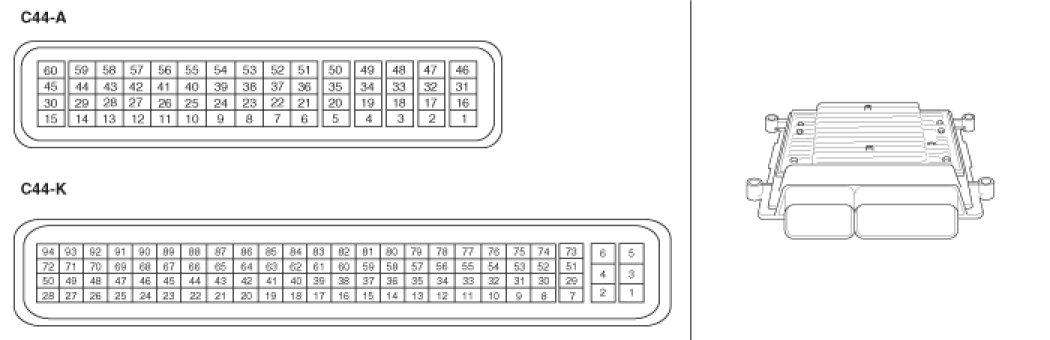

1. PCM harness connector




2. ECM terminal function

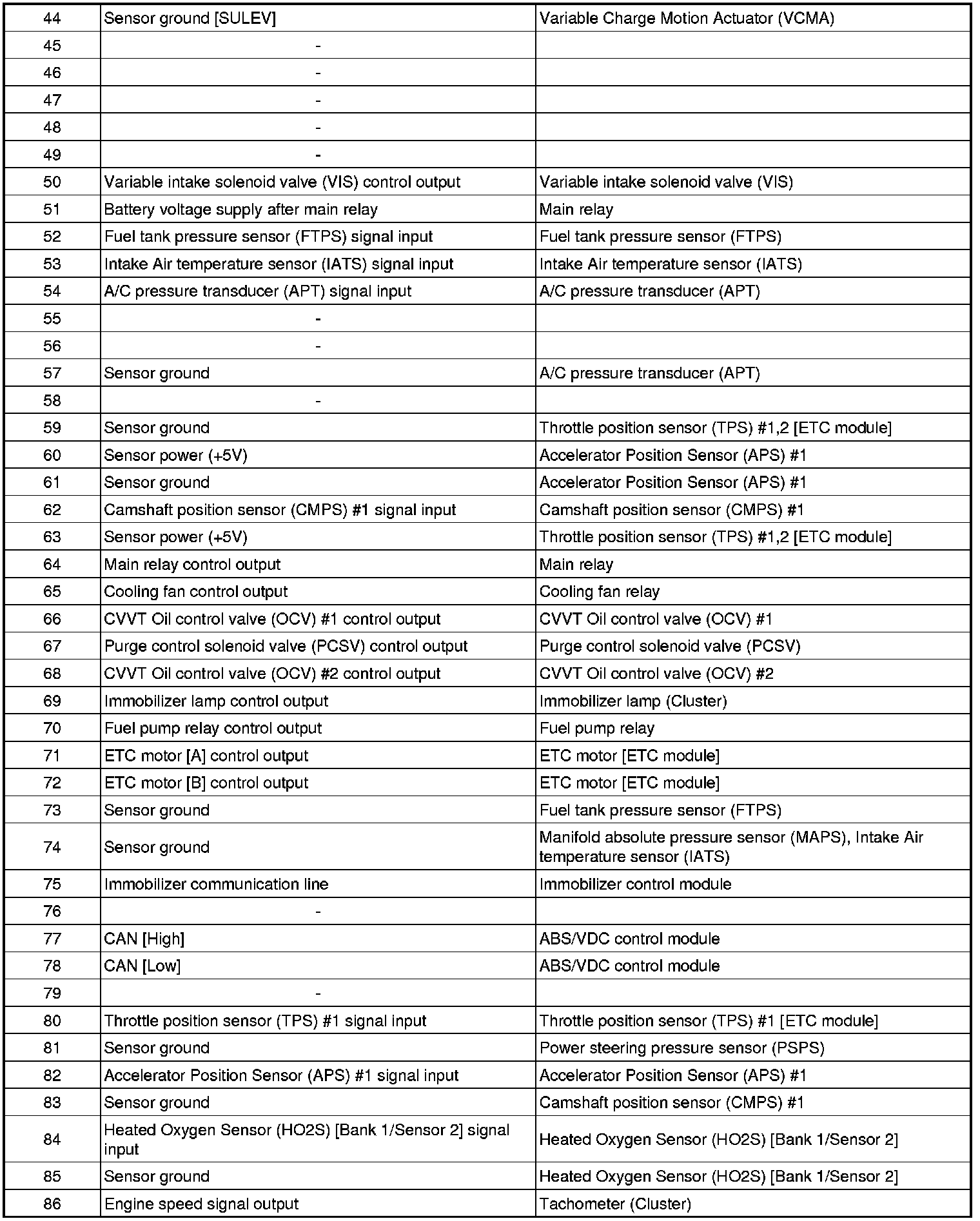

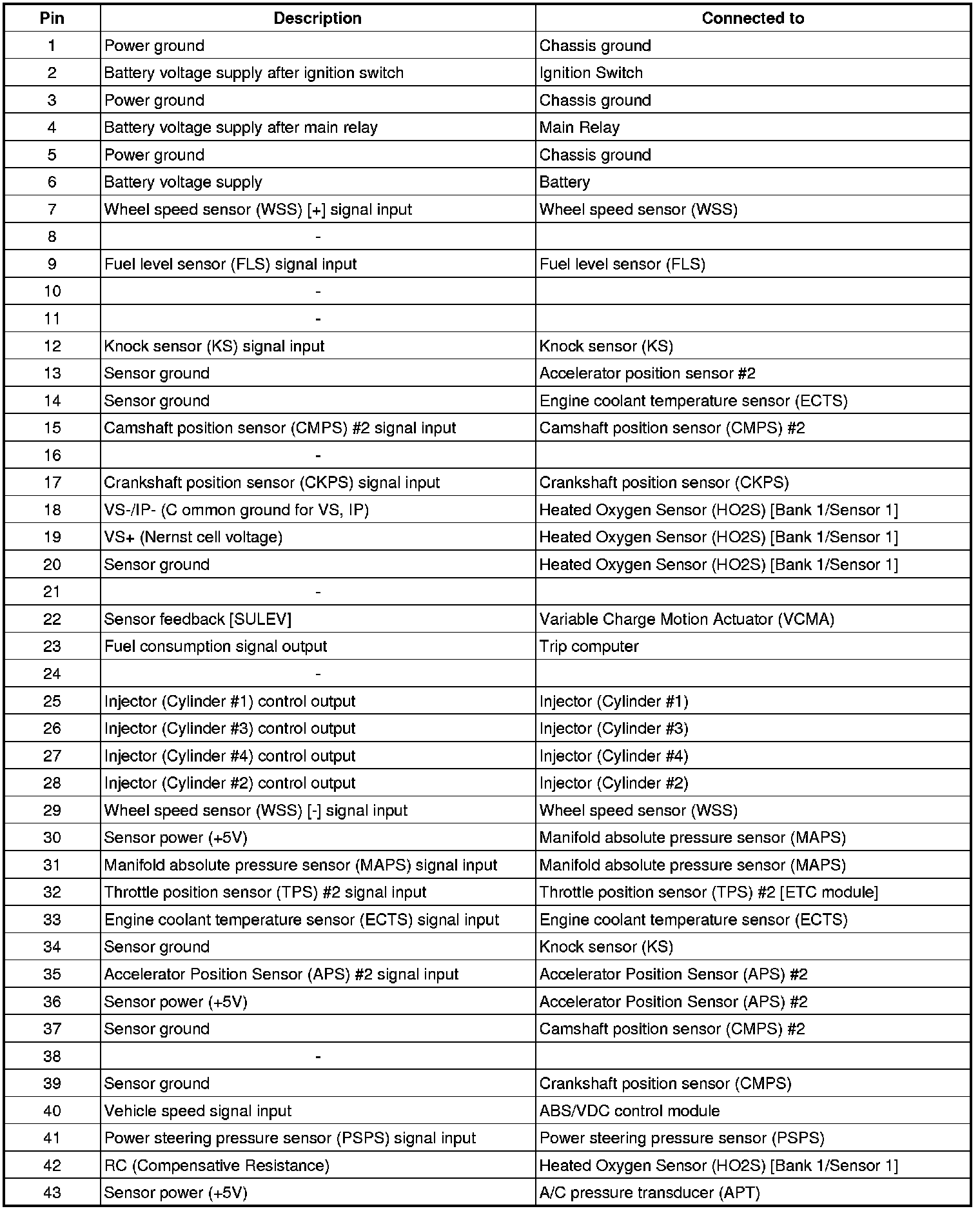

Connector [C44-K]













Connector [C44-A]

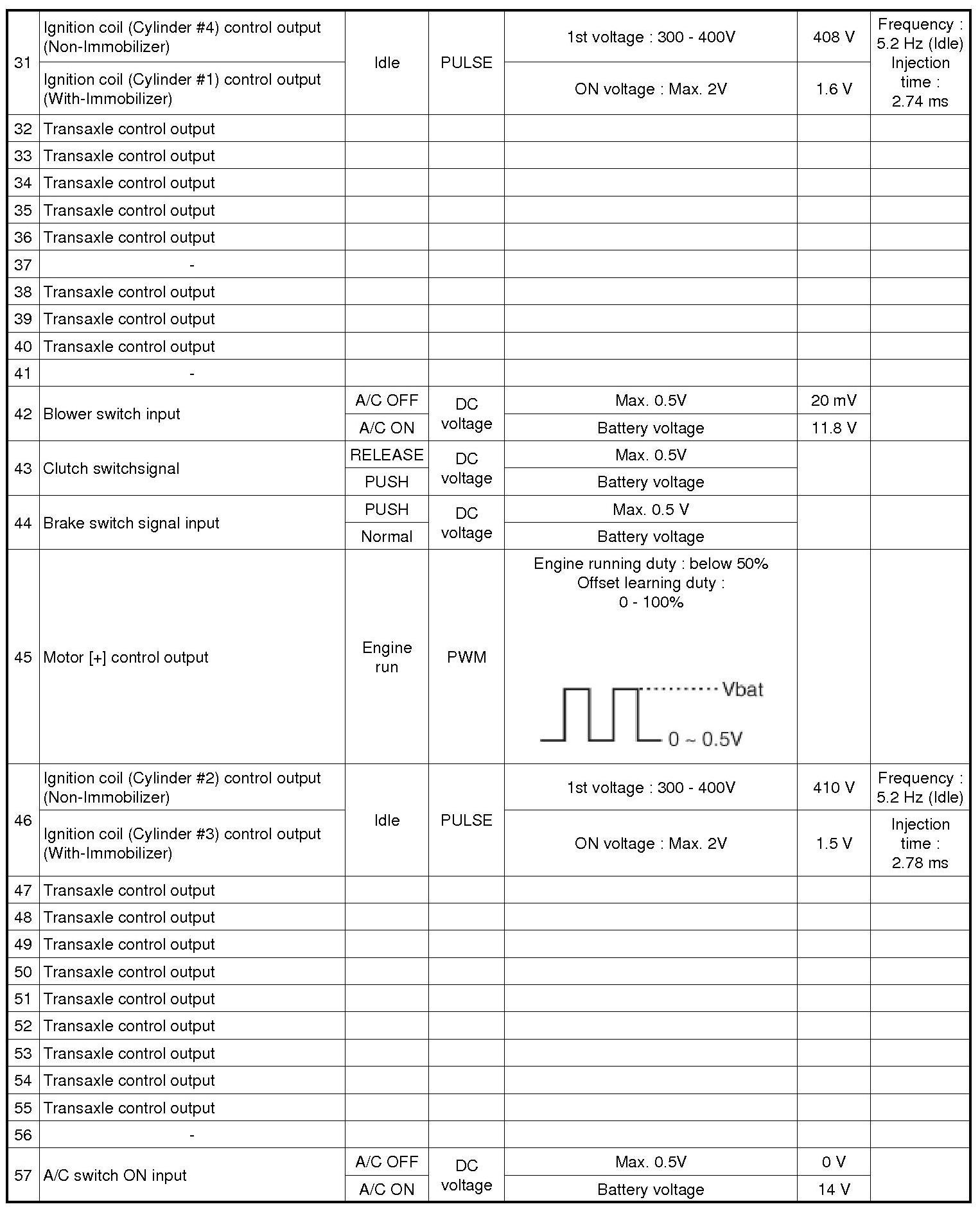

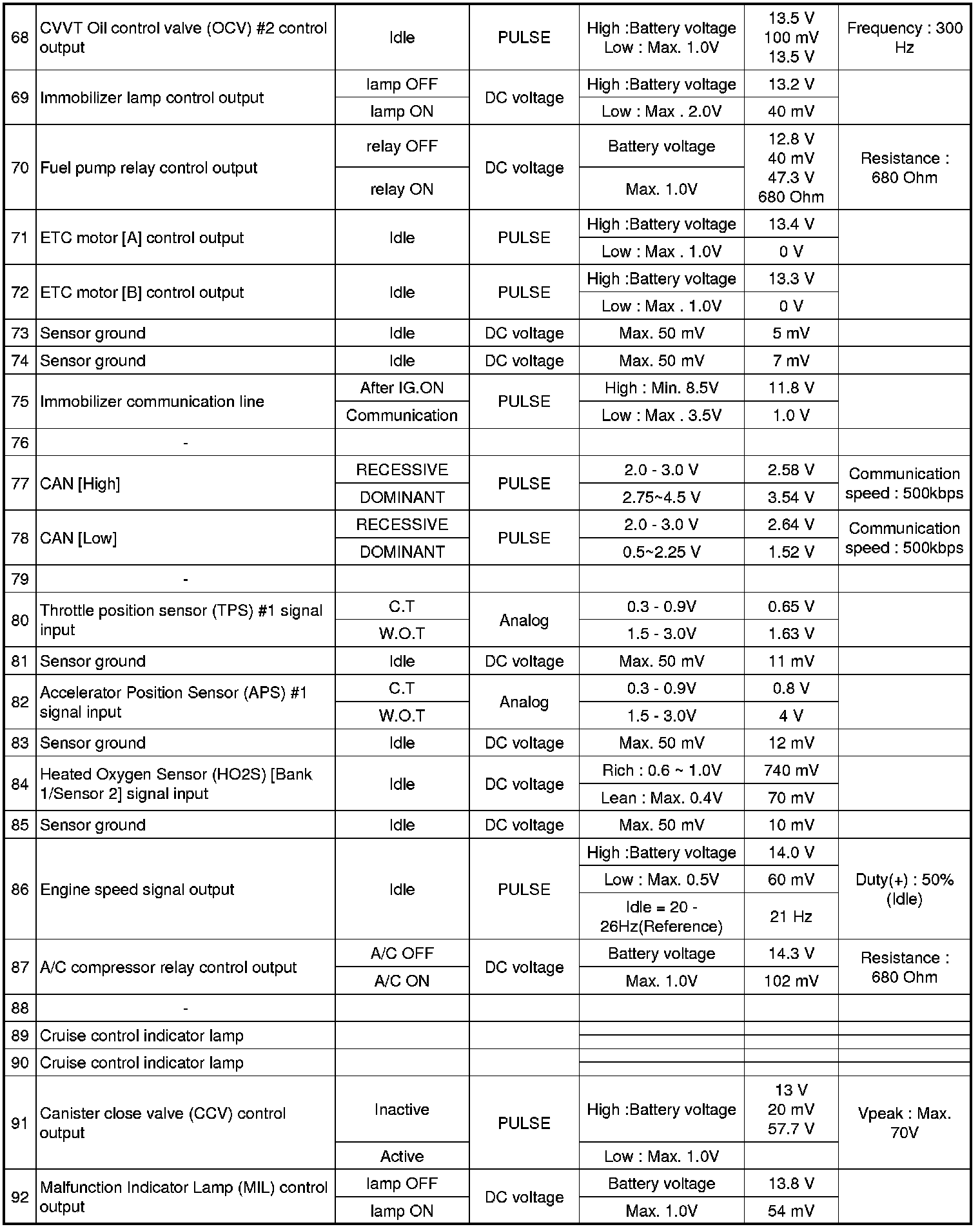

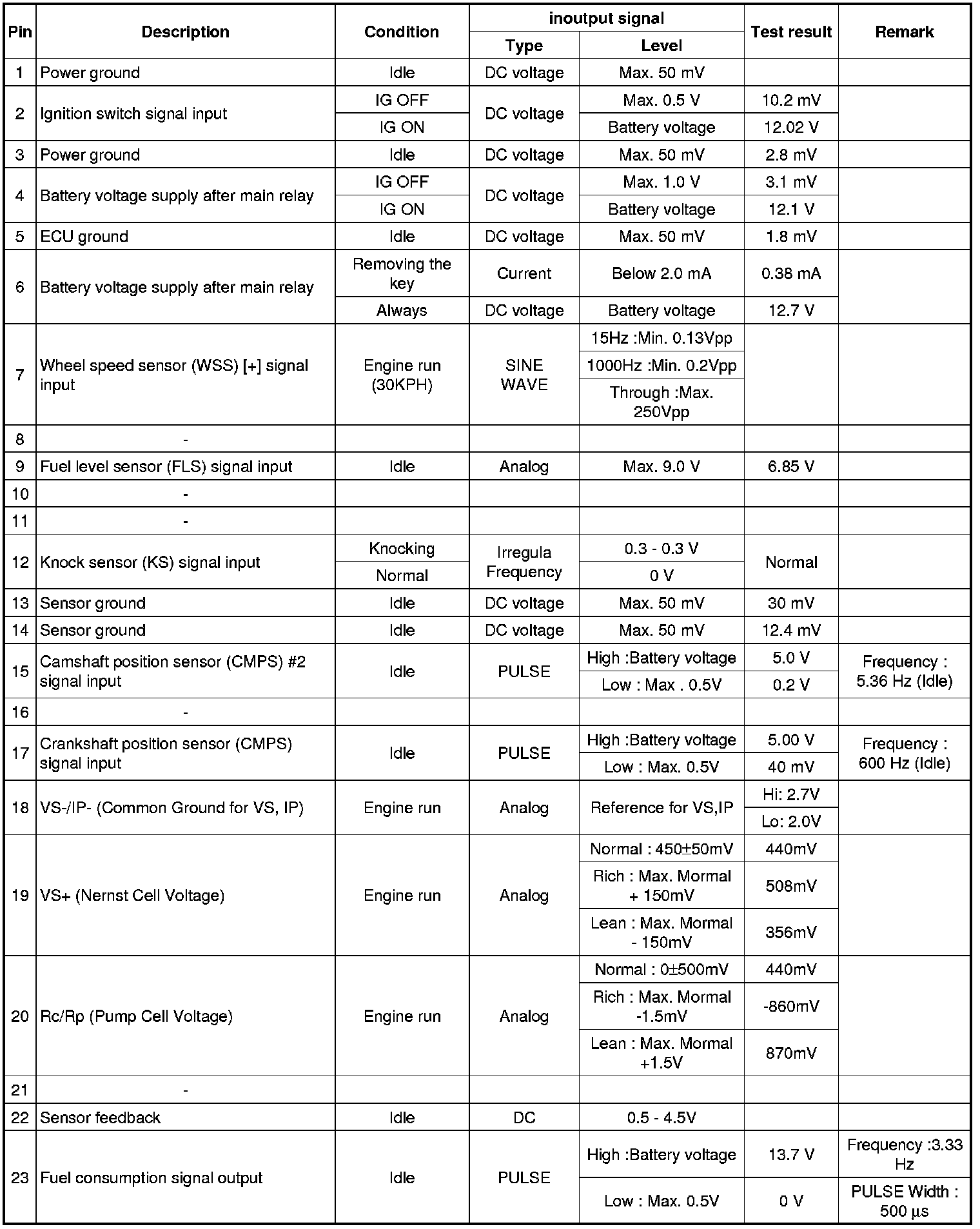

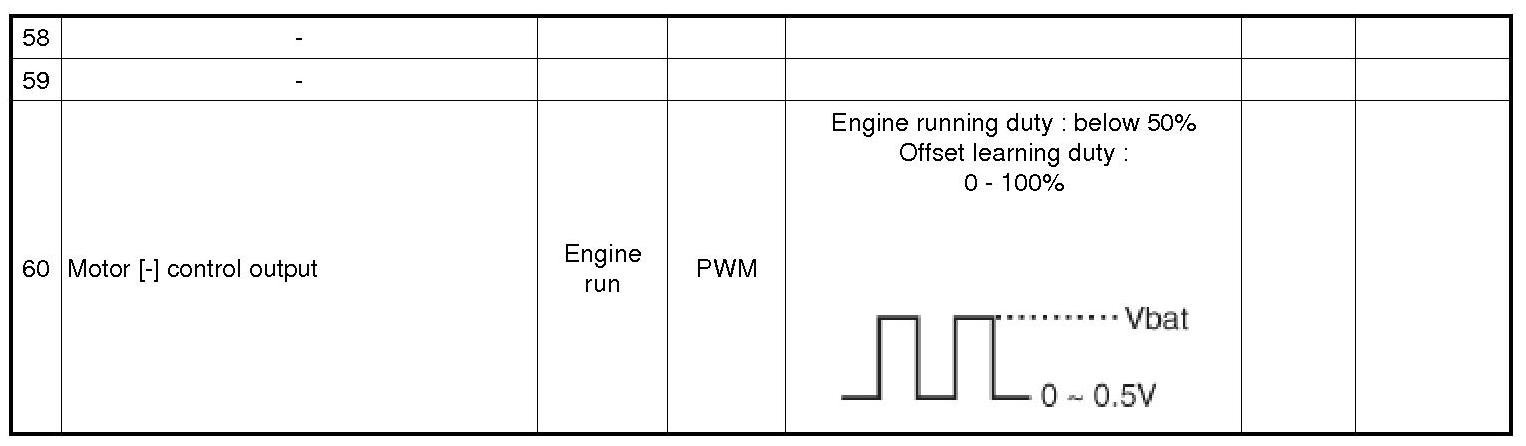

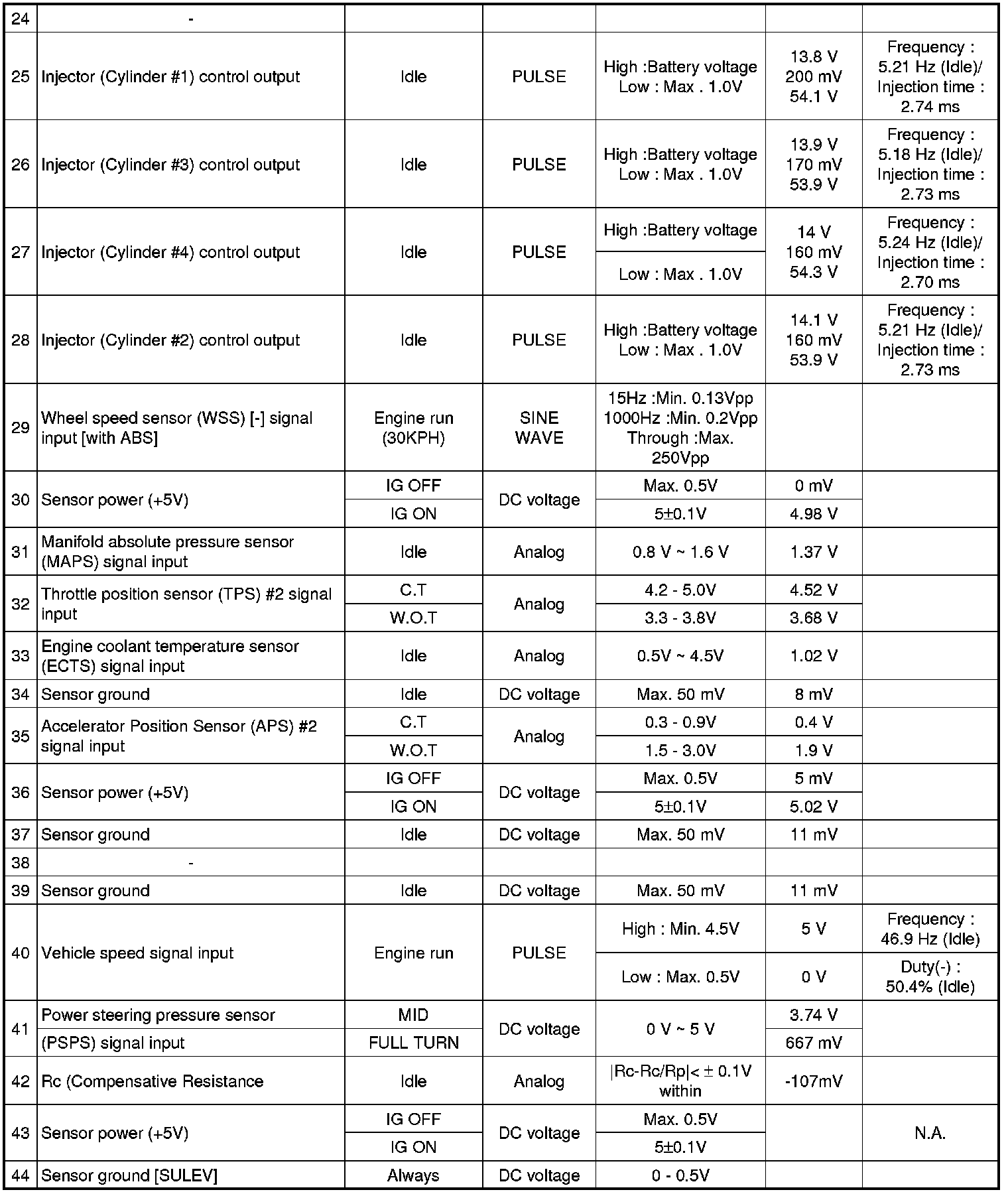

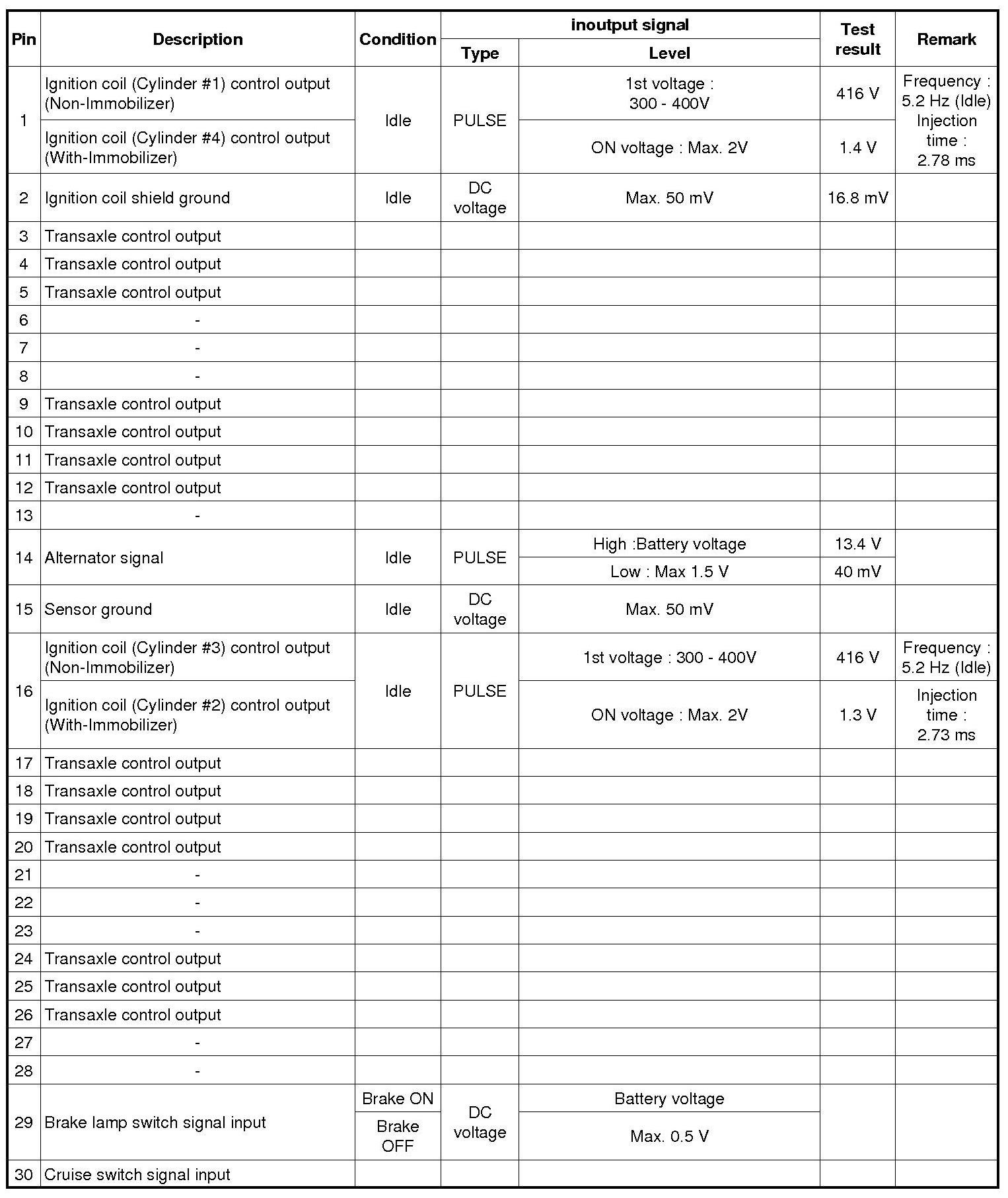

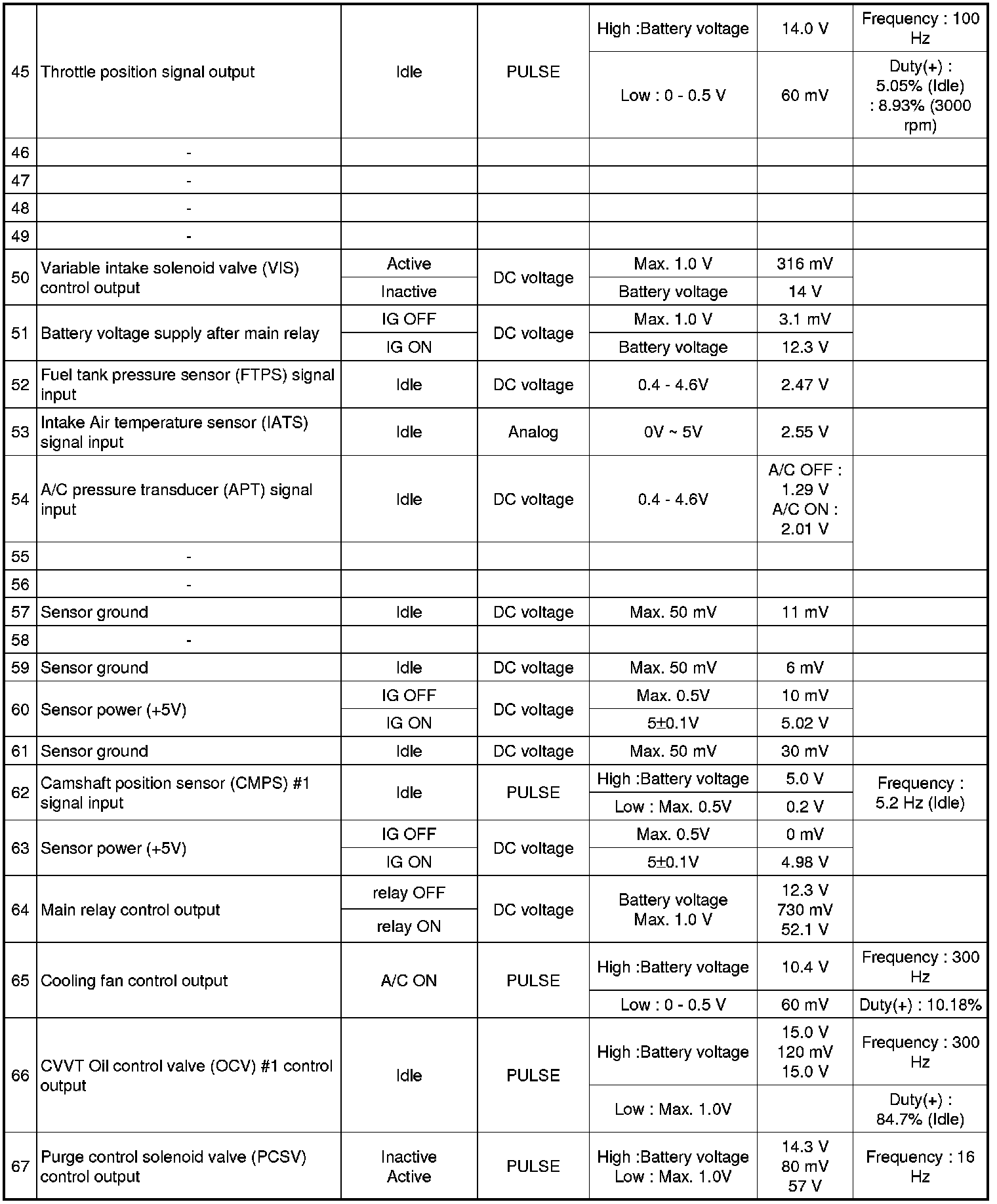

3. Input / output signal

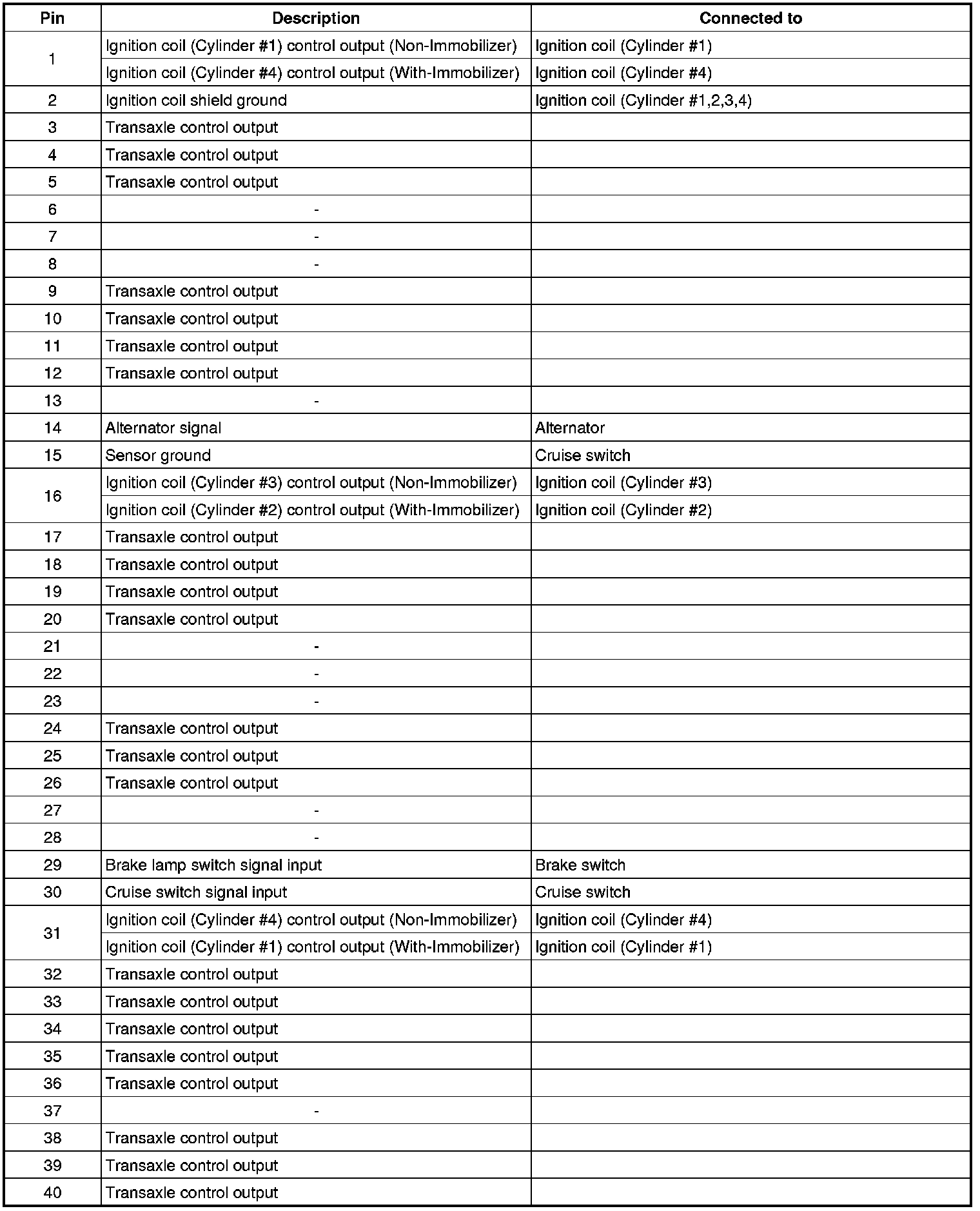

Connector [C44-K]





















Connector [C44-A]














Circuit diagram
