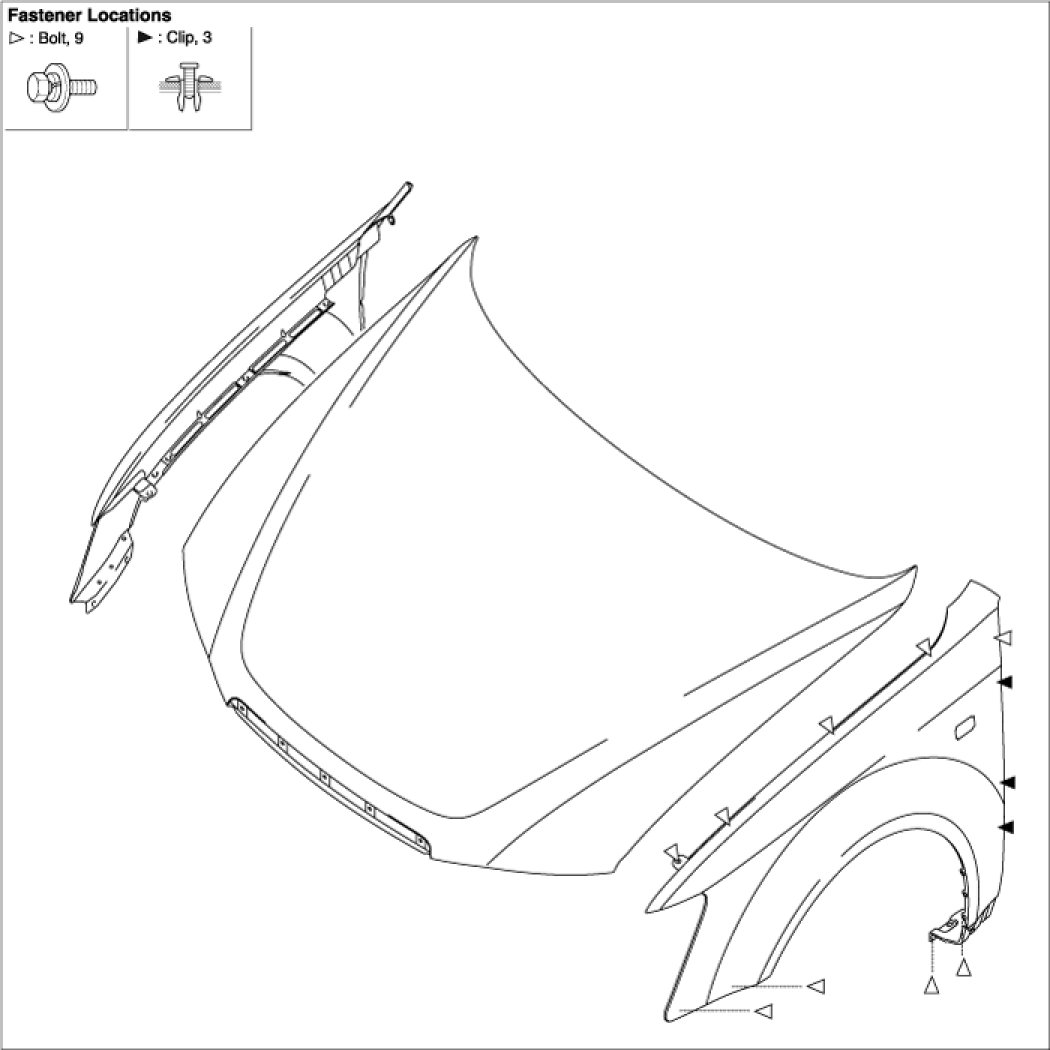

Front Fender: Service and Repair

Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply around the related parts to prevent damage.
- Put on gloves to protect your hands.
- Take care not to scratch the body surface.

1. Remove the following items;
A. Side garnish
B. Front bumper
C. Wheel guard
D. Headlamp
2. Installation is the reverse of removal.
