Circuit Diagram

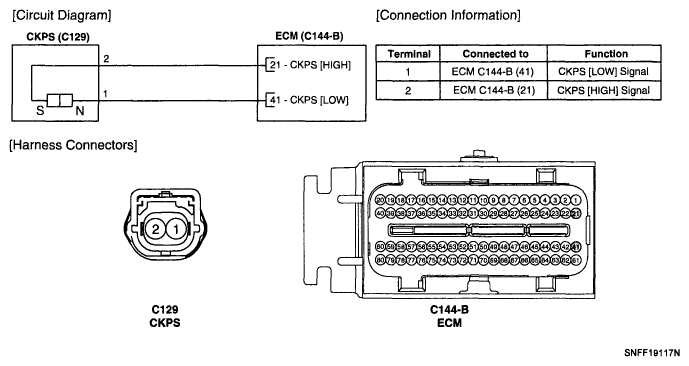

Fig 1: Crankshaft Position Sensor (CKPS) - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
