General Information (Fuel System) - 2.4L
>>
Basic troubleshooting
>>
Basic troubleshooting guide
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Basic troubleshooting guide

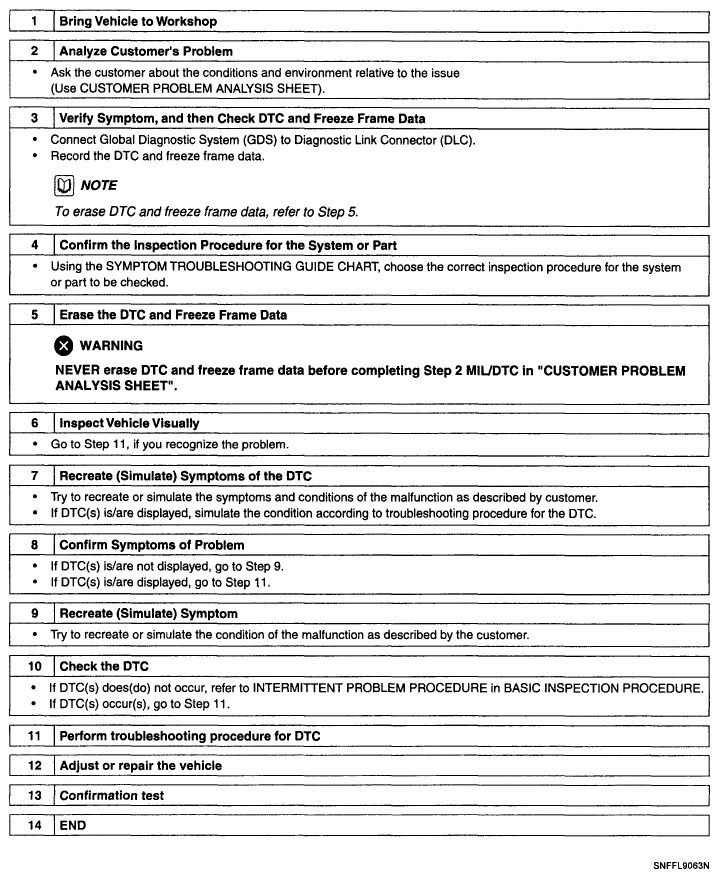

Fig 1: Identifying Basic Troubleshooting Guide
Courtesy of HYUNDAI MOTOR CO.
