Engine Control System (Fuel System) - 2.4L
>>
Engine Coolant Temperature Sensor (ECTS)
>>
Circuit diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit diagram

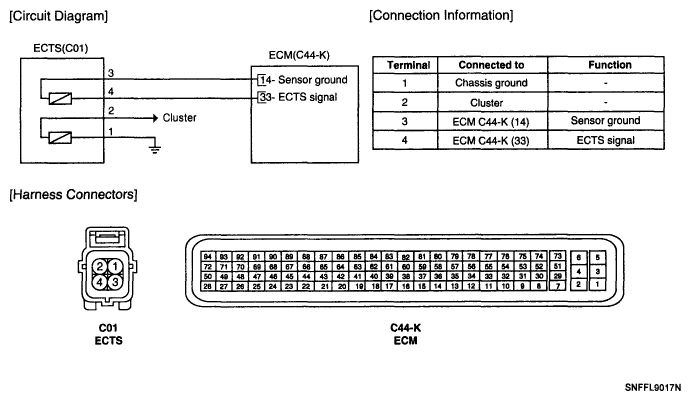

Fig 1: ECTS And ECM - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
