Engine Control System (Fuel System) - 2.4L
>>
ETC (Electronic Throttle control) System
>>
Circuit diagram
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit diagram: Notes

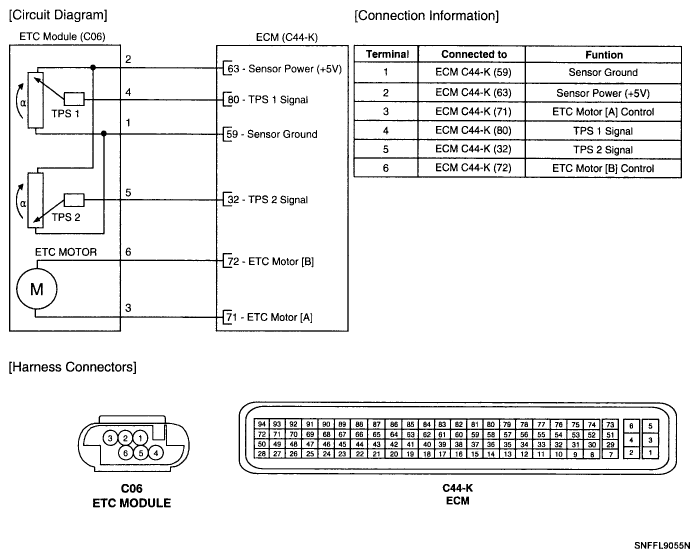

Fig 1: ETC Module And ECM Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
