Variable Intake Solenoid (VIS) Valve
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

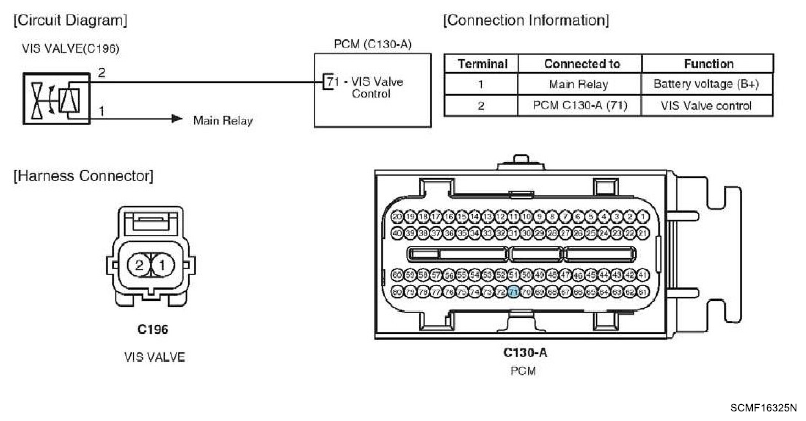

Fig 1: VIS Valve Circuit Diagram With Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
