Circuit Diagram

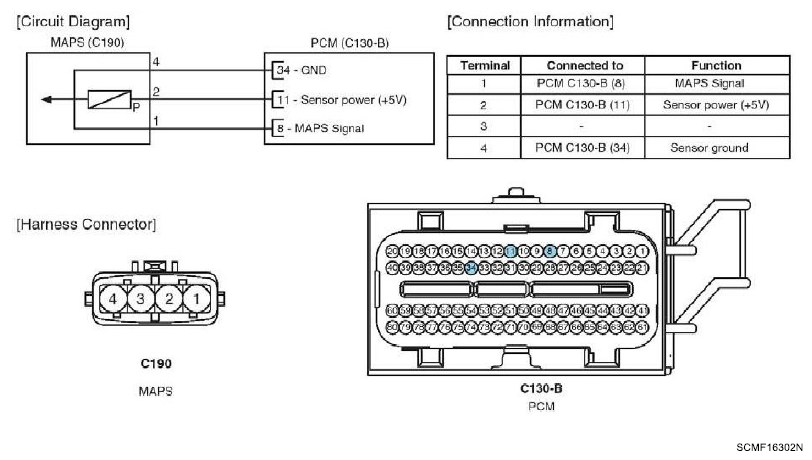

Fig 1: Manifold Absolute Pressure Sensor Circuit Diagram With Connector Terminals
G06217943Courtesy of HYUNDAI MOTOR CO.
