Schematic Diagram

[2.7 V6]

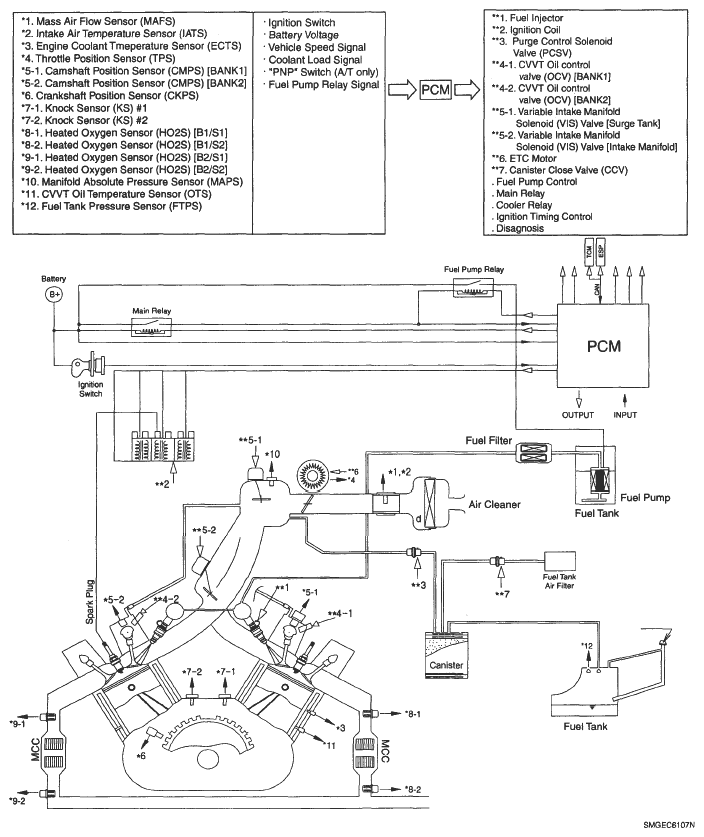

Fig 1: Emissions Control System (2.7 V6) - Schematic Diagram
G05348824Courtesy of HYUNDAI MOTOR CO.

[3.3 V6]

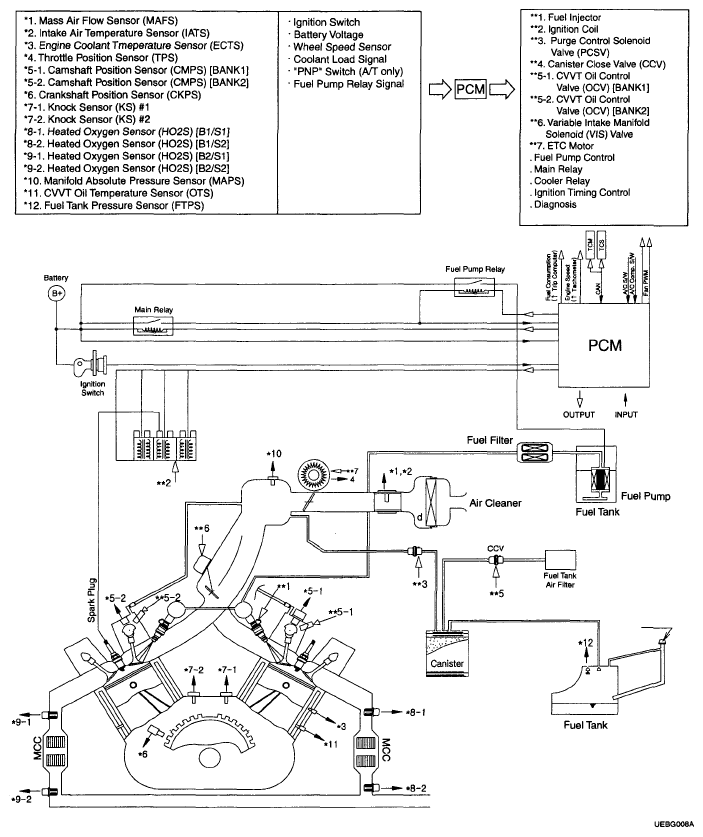

Fig 2: Emissions Control System (3.3 V6) - Schematic Diagram
G04879781Courtesy of HYUNDAI MOTOR CO.
