Oil Pan, Engine





Oil Pan

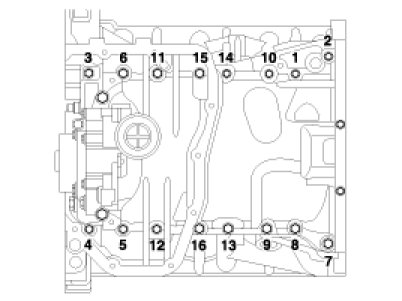

Install oil pan.
Uniformly tighten the bolts in several passes.

Tightening torque 9.80 - 11.76 Nm (1.0 - 1.2 kgf.m, 7.23 - 8.68 lb-ft)
