Repair Procedures





Replacement

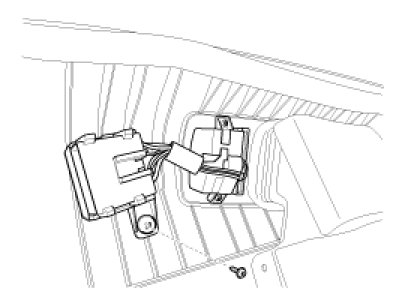

1. Remove the rear side trim.

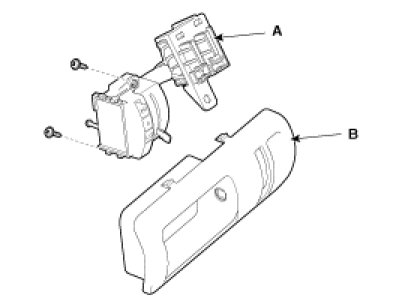

2. Loosen the mounting screw and then remove the rear blower controler(A) from the rear side trim.

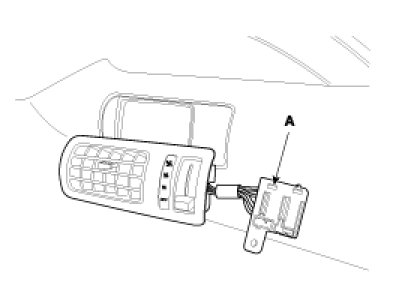

3. Loosen the mounting screw and then remove the rear blower cintrol unit (A) from the air vant(B).




4. Installation is the reverse order of removal.
