Home >> Hyundai >> 2009 >> Genesis Sedan V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Driver/Vehicle Information Display >> DIS Head Unit
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

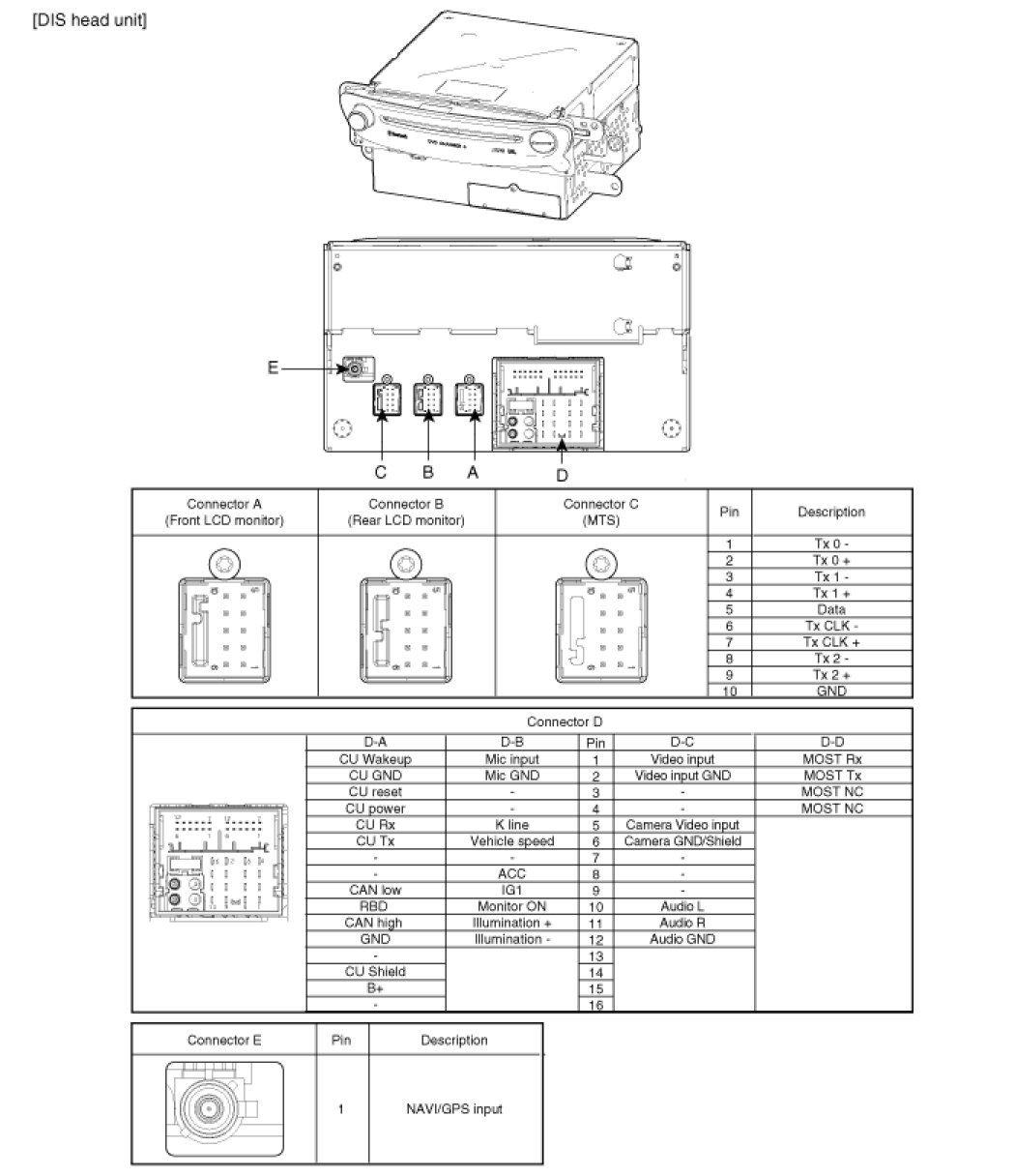

DIS Head Unit





Component Location
