Connecting Rod Bearing Cap

Connecting Rod Bearing Cap

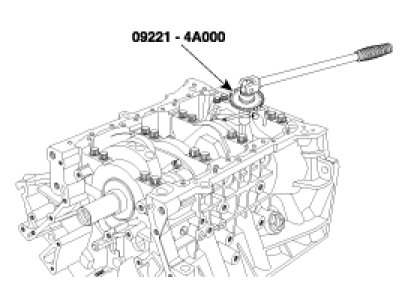

Reinstall the bearing half and cap, and torque the bolts.

Tightening torque 19.6 Nm (2.0 kgf.m, 14.46 lb-ft) + 90°






NOTE: Do not turn the crankshaft.
