Driver Airbag (DAB) Module and Clock Spring: Removal

Disconnect the battery negative cable and wait for at least three minutes before beginning work.
Remove the airbag module mounting bolts (2EA).

Fig 1: Identifying Airbag Module Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.
Disconnect the horn connector (A).

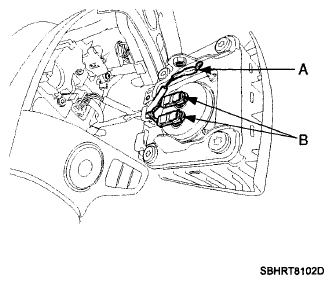

Fig 2: Identifying Horn Connector
Courtesy of HYUNDAI MOTOR CO.
Release the connector locking pin, then disconnect the driver airbag module connector (B).
CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover face up.
Remove the steering wheel and steering wheel column cover. (Refer to STEERING COLUMN & SHAFT )

Fig 3: Identifying Steering Wheel Column Cover Bolts
Courtesy of HYUNDAI MOTOR CO.
Disconnect the clock spring and horn connector, then remove the clock spring.

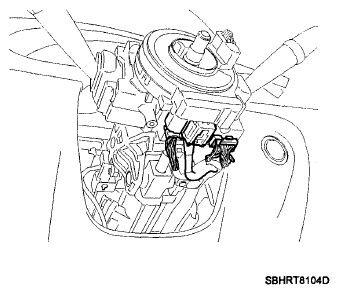

Fig 4: Identifying Clock Spring And Horn Connector
Courtesy of HYUNDAI MOTOR CO.
