Decayed Room Lamp Control

The Decayed Room Lamps control the state of the Room Lamps by IPM.

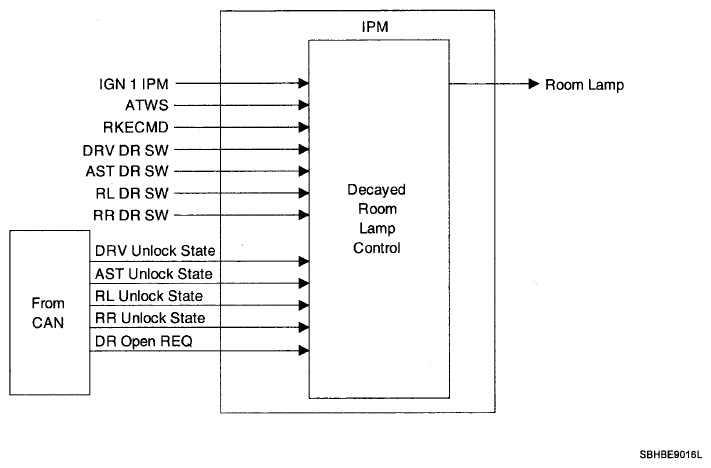

Fig 1: Decayed Room Lamp Control Communication Diagram
G06101285Courtesy of HYUNDAI MOTOR CO.
