Sliding Door Window Motor: Service and Repair

Replacement

Sliding Power Window Motor
1. Remove (-) negative battery terminal.
2. Remove the sliding door trim panel.
3. Remove the door trim seal and glass.
4. Remove the door regulator.

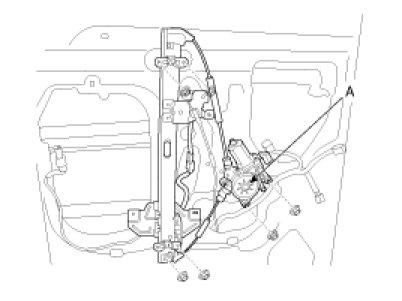

5. Remove the power window motor (A) after disconnecting the motor connector and power window motor mounting nuts.




6. Installation is the reverse of removal.
