ABS (Anti-Lock Brake System)

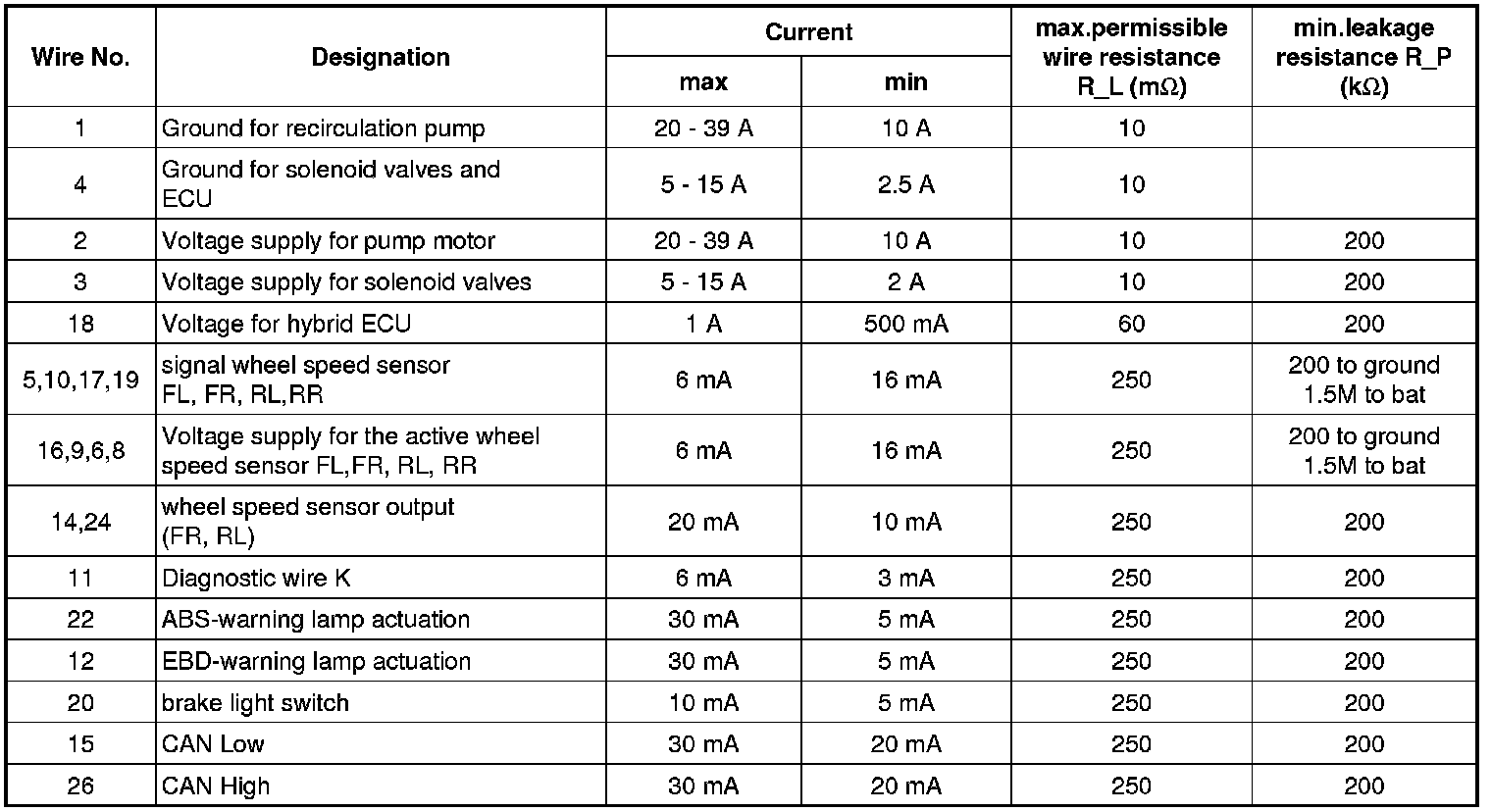

ECU Connector Input/output(ABS)

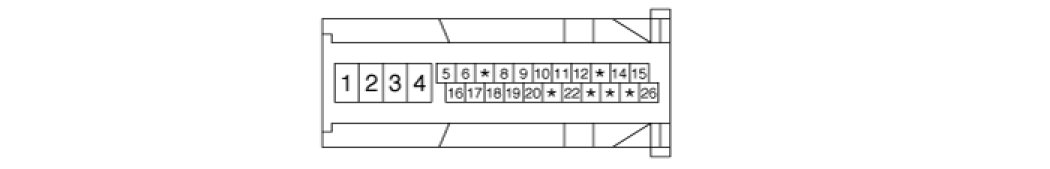

ABS HECU Connector





Sensor Output On Scan Tool(ABS)
