Air Register: Service and Repair

Replacement

Air Vent Replacement

NOTE:
- When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Remove the side cover.

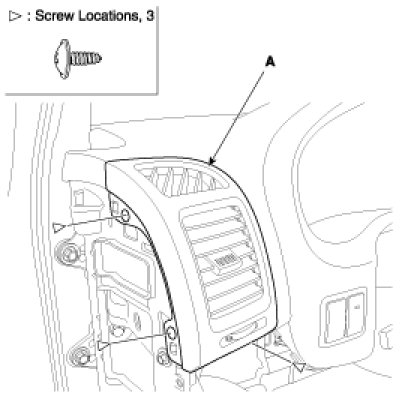

2. Loosen the mounting screws, then remove the air vent (A).




3. Installation is the reverse of removal.
