Power Mirror Switch: Testing and Inspection





Inspection

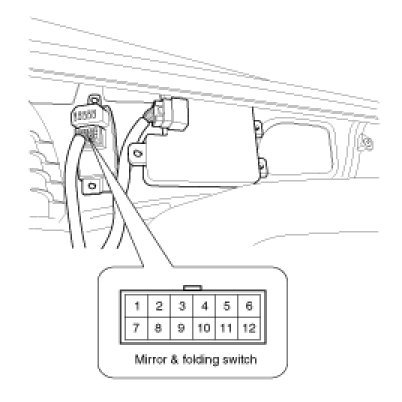

1. Disconnect the 12P connector from the switch.

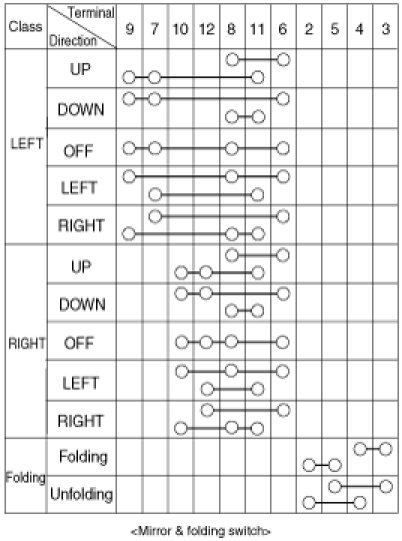

2. Check for continuity between the terminals in each switch position according to the table.
