Front Fender Liner: Service and Repair

Replacement

Front Mud Guard And Wheel Guard Replacement

NOTE:
- When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
- Take care not to scratch the body surface.

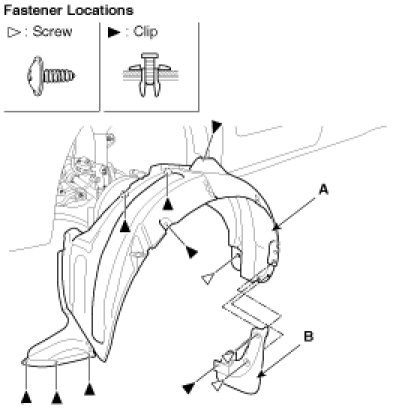

1. Remove the wheel guard (B) first by removing the clip and screw, then remove the wheel guard(A), by removing the screws and clip.




2. Installation is the reverse of removal.
