Pinout Values and Diagnostic Parameters

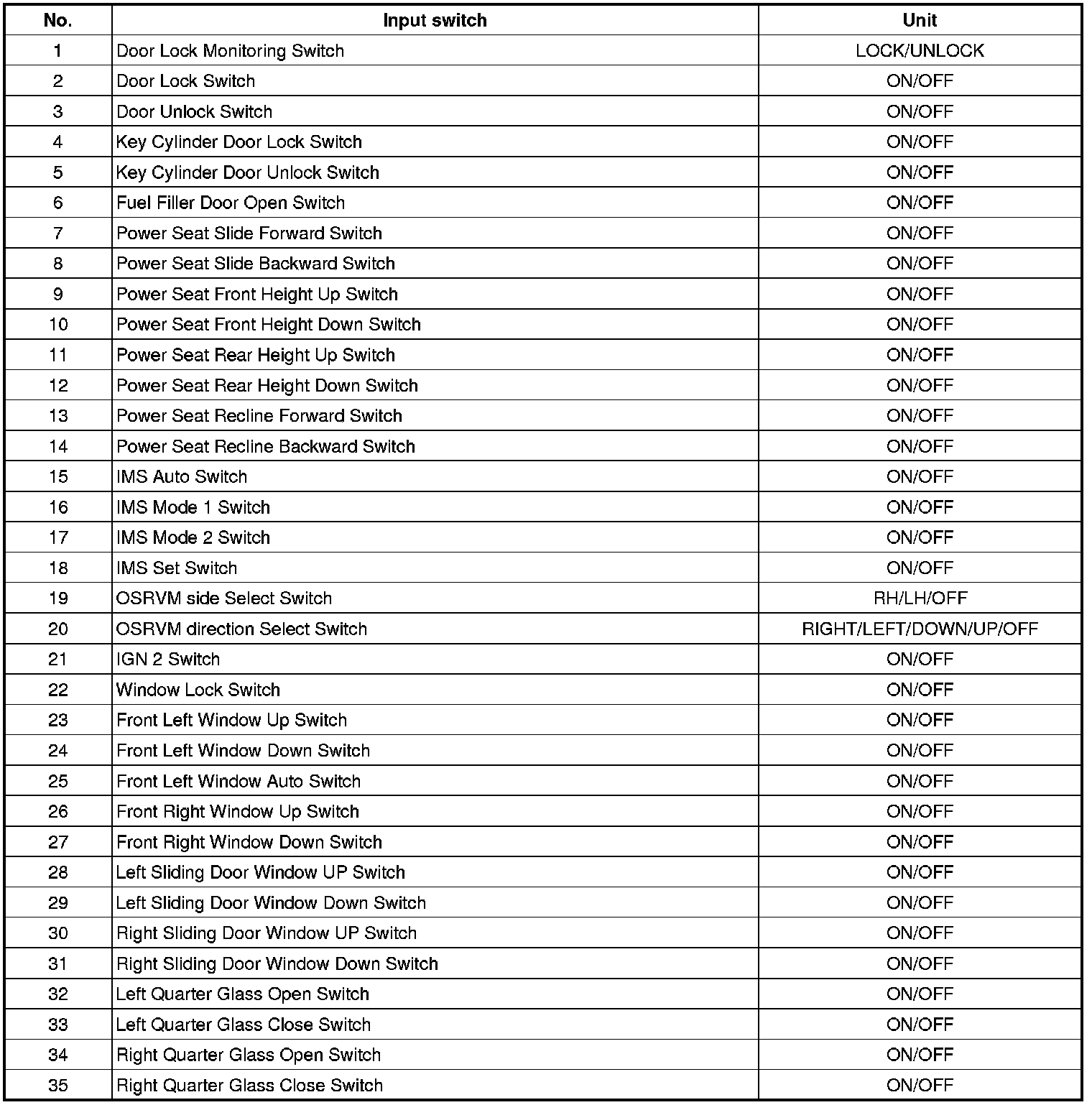

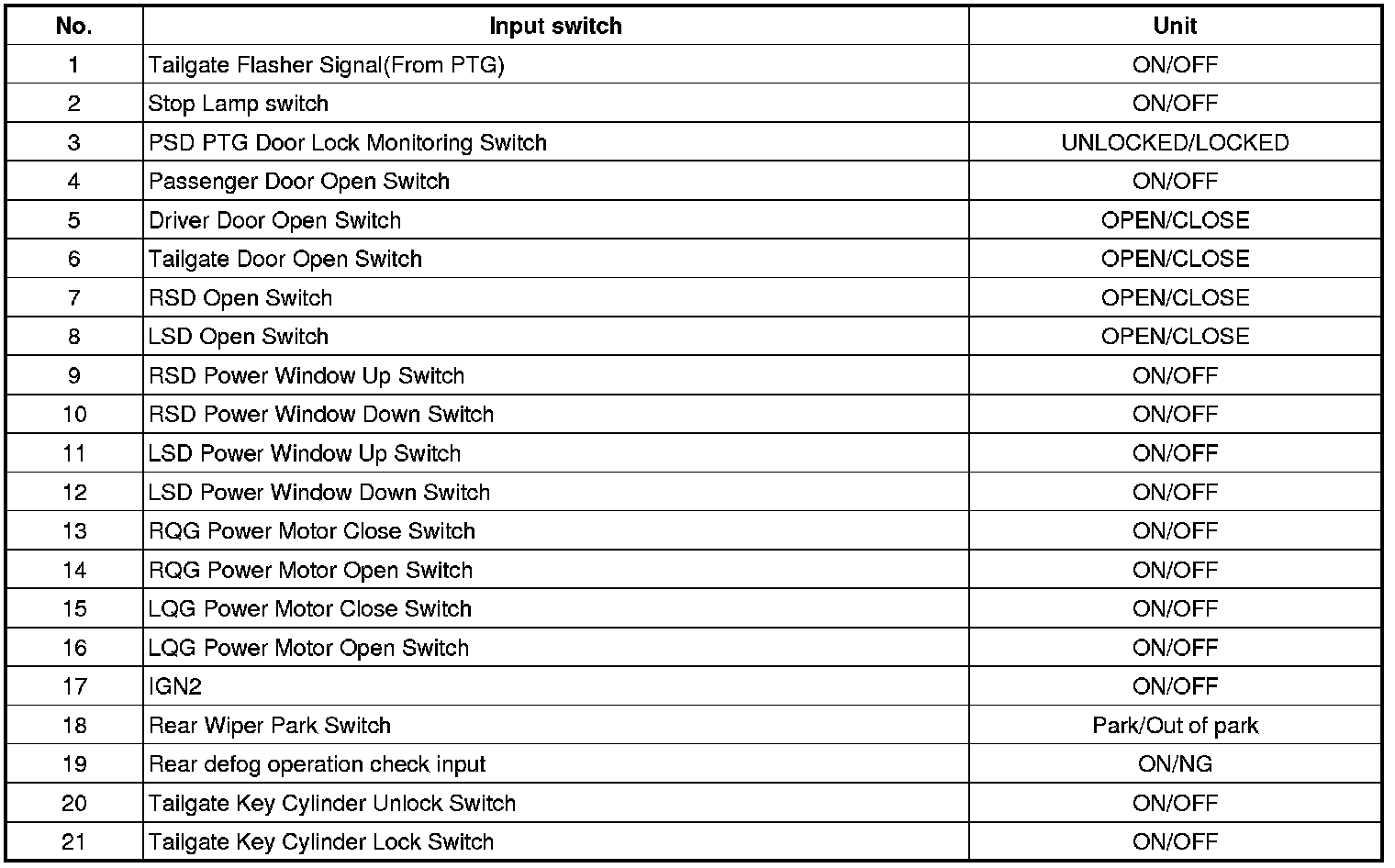

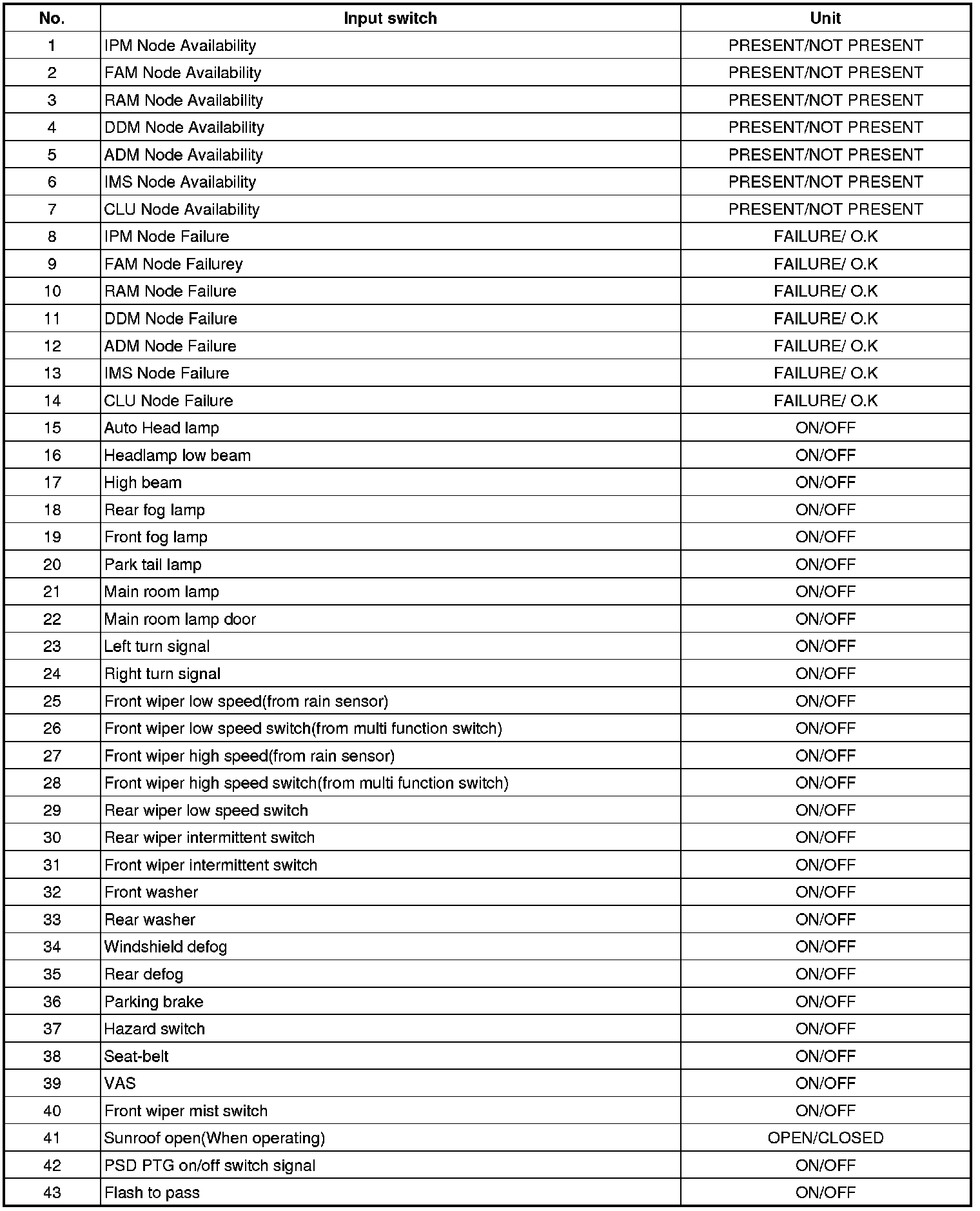

Input Monitoring
IPM (In-Panel Module)
FAM (Front Area Module)
RAM (Rear Area Module)
DDM (Driver door module)
ADM (Assist door module)
IMS Module
Driving Actuator

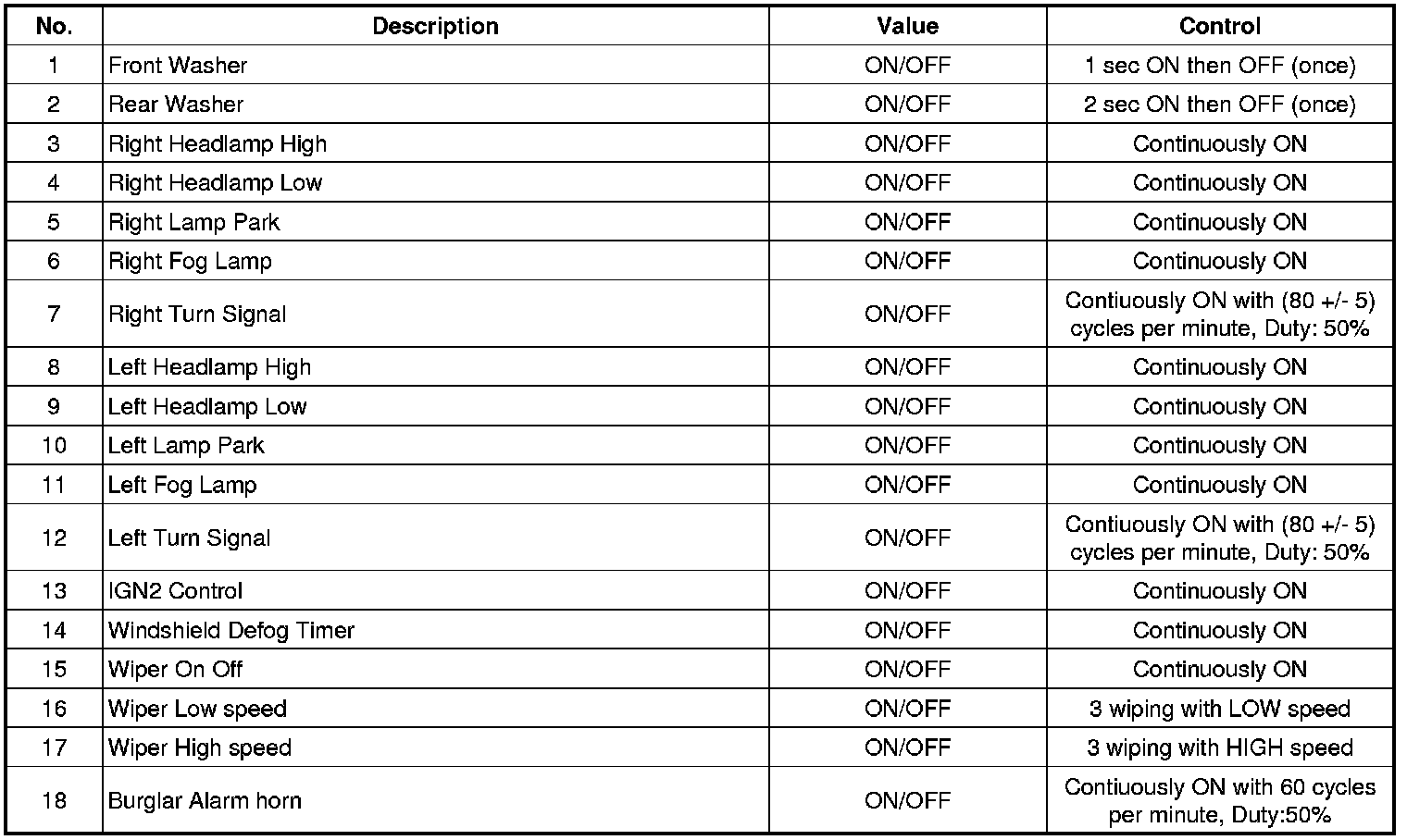

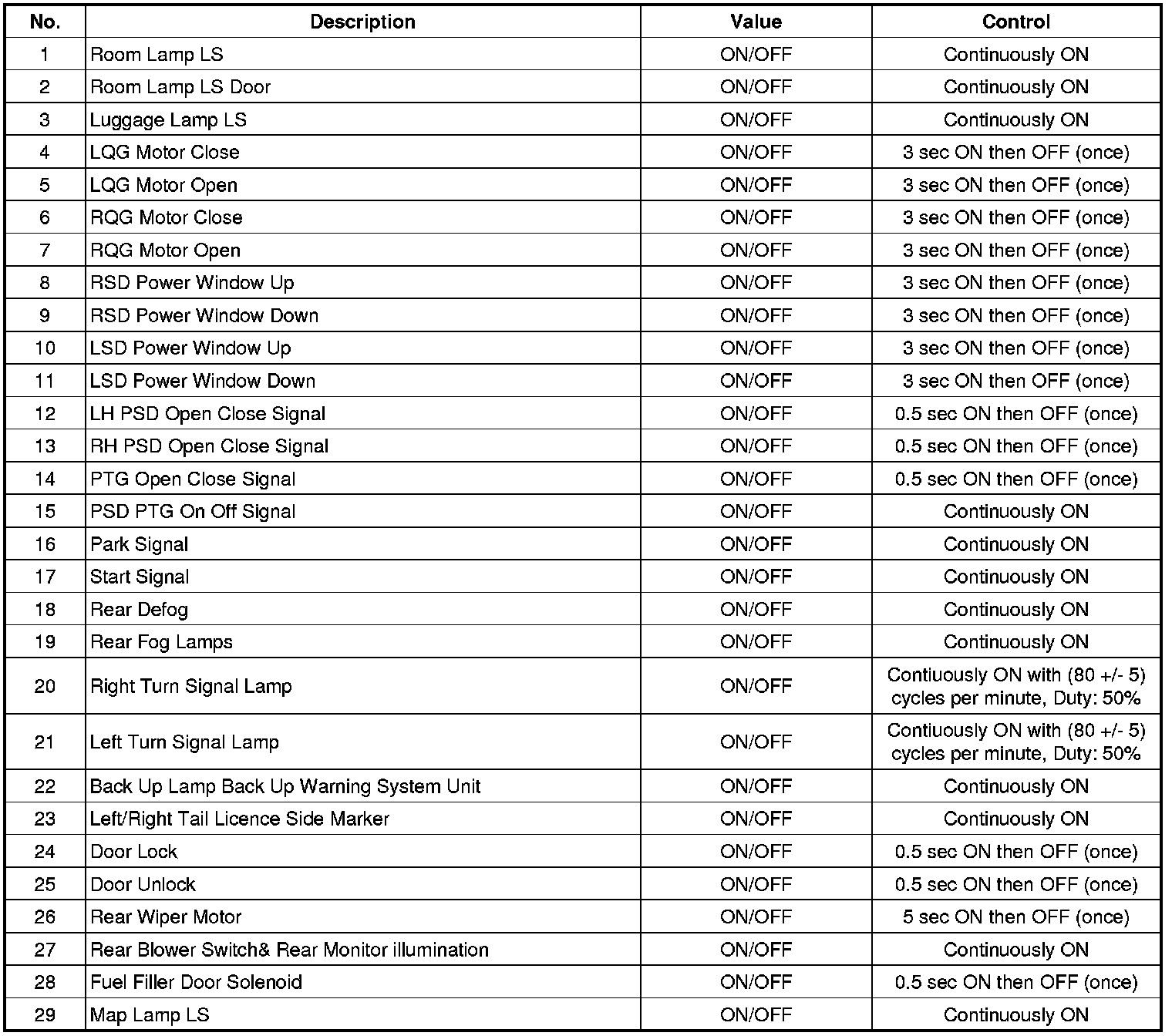

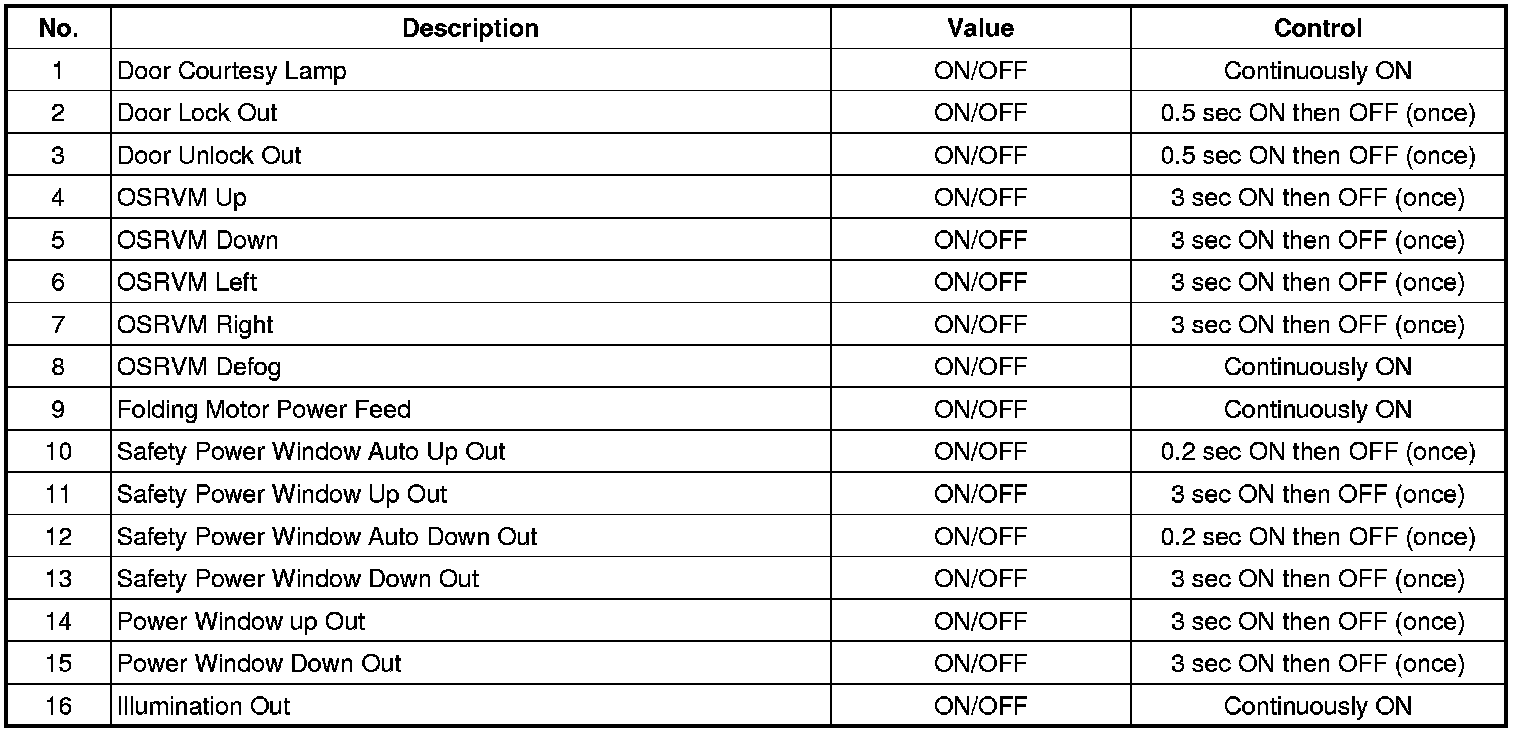

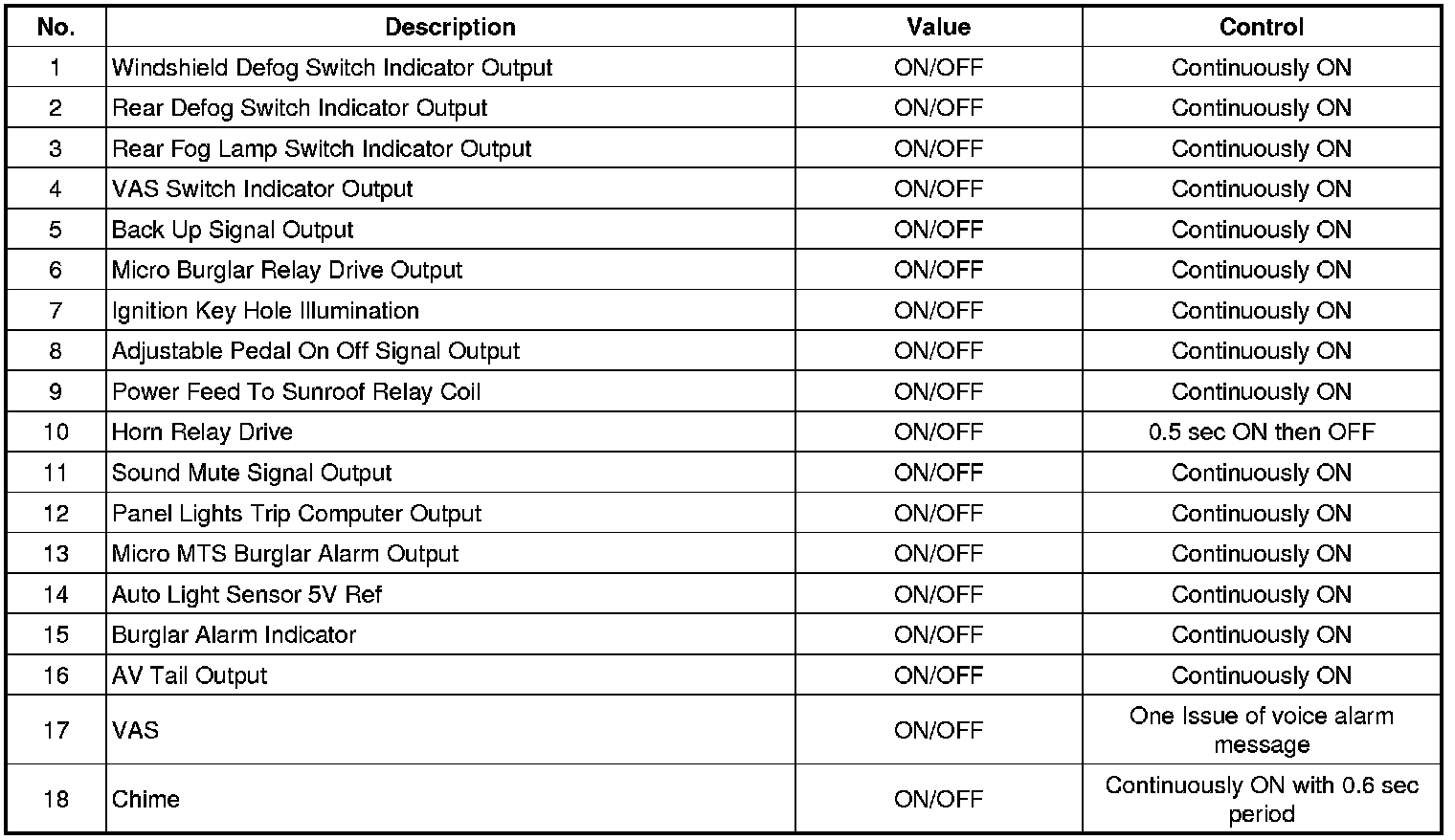

IPM Actuator List
FAM Actuator List
RAM Actuator List
DDM Actuator List
ADM Actuator List
IMS Actuator List
