Check PCM/TCM

WARNING: This page is about a different variant/trim than selected.

Ignition "ON" & Engine "OFF".
Connect "OUTPUT SPEED SENSOR" connector.
Install scantool and sleet a SIMU-SCAN,
Simulate frequency to OUTPUT SPEED SENSOR signal circuit.

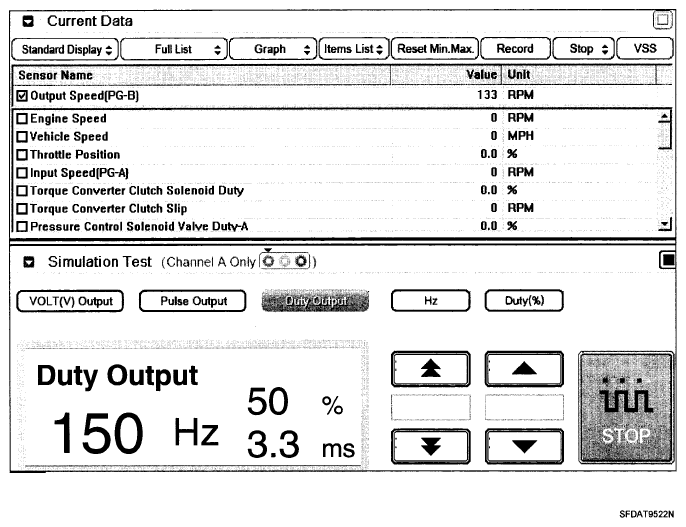

Fig 1: Scantool Display - Output Speed Sensor Output 150Hz → 133rpm
Courtesy of HYUNDAI MOTOR CO.

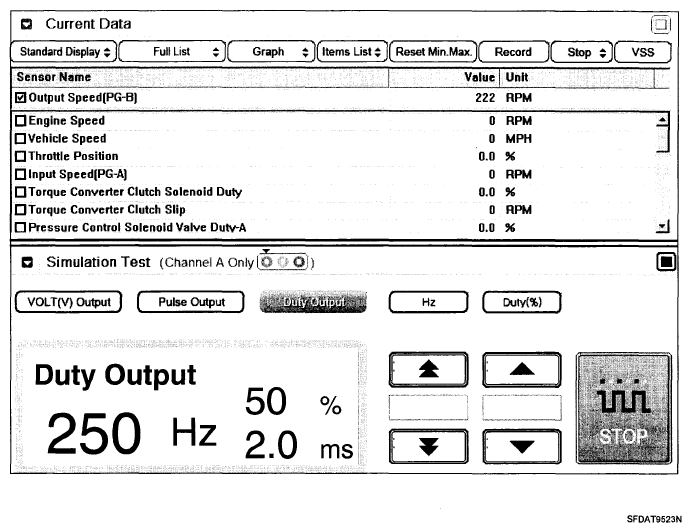

Fig 2: Scantool Display - Output Speed Sensor Output 250Hz → 222rpm
Courtesy of HYUNDAI MOTOR CO.

The values are subject to change according to vehicle model or conditions
Is "OUTPUT SPEED SENSOR" signal value changed according to simulation frequency?
YES
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute with a known-good PCM/TCM and check for proper operation. If the problem is corrected, replace PCM/TCM as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
