Circuit Diagram: Notes

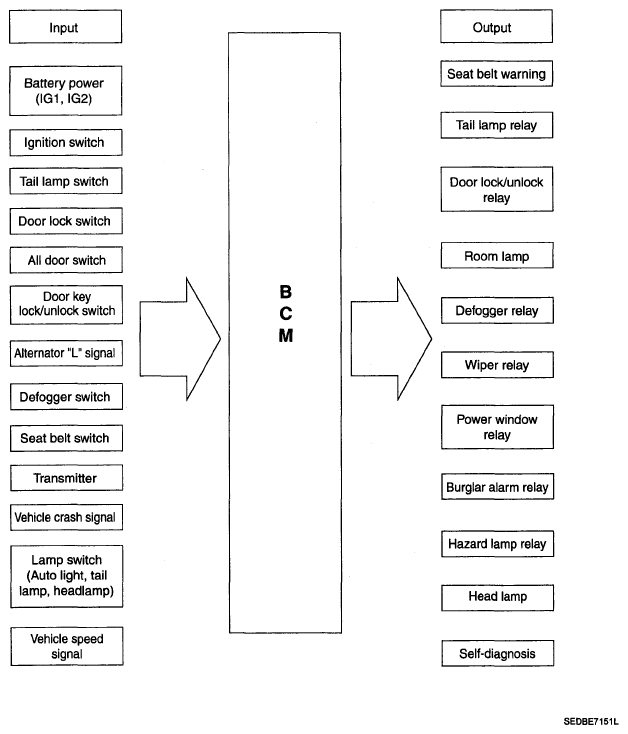

Fig 1: Body Control Module Circuit Diagram

G06145317

Courtesy of HYUNDAI MOTOR CO.
