Engine Block: Components

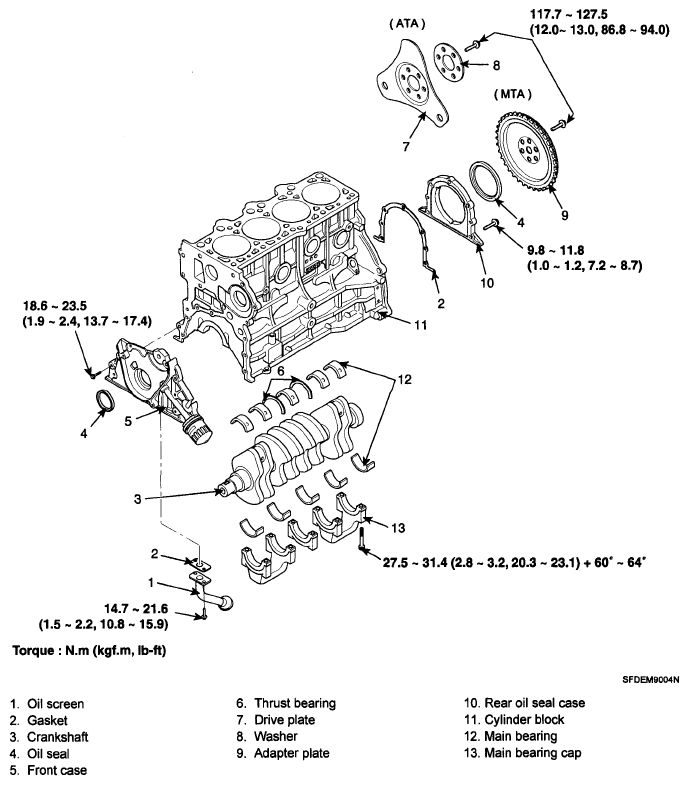

Fig 1: Engine Block Components With Torque Specifications (1 Of 2)
G06135827Courtesy of HYUNDAI MOTOR CO.

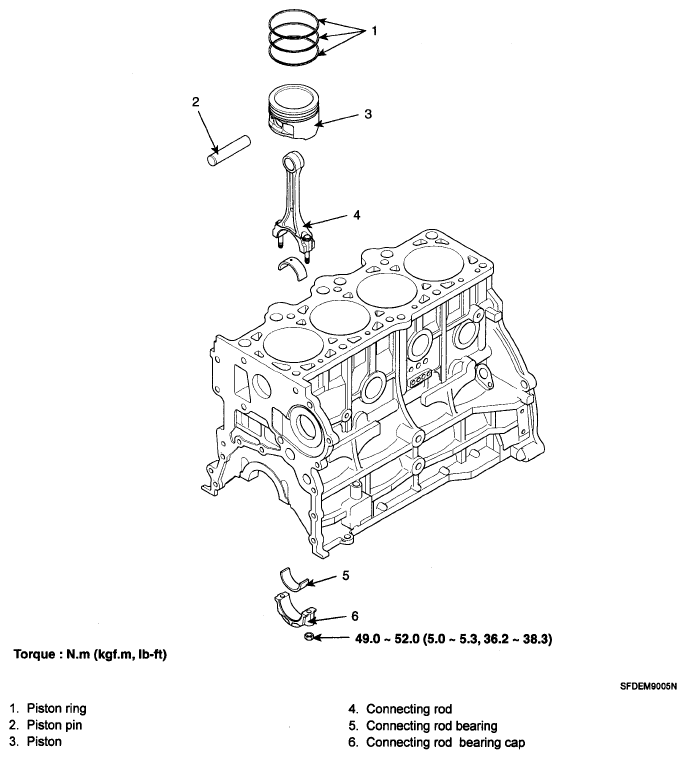

Fig 2: Engine Block Components With Torque Specifications (2 Of 2)
G06135828Courtesy of HYUNDAI MOTOR CO.
