Components and Components Location

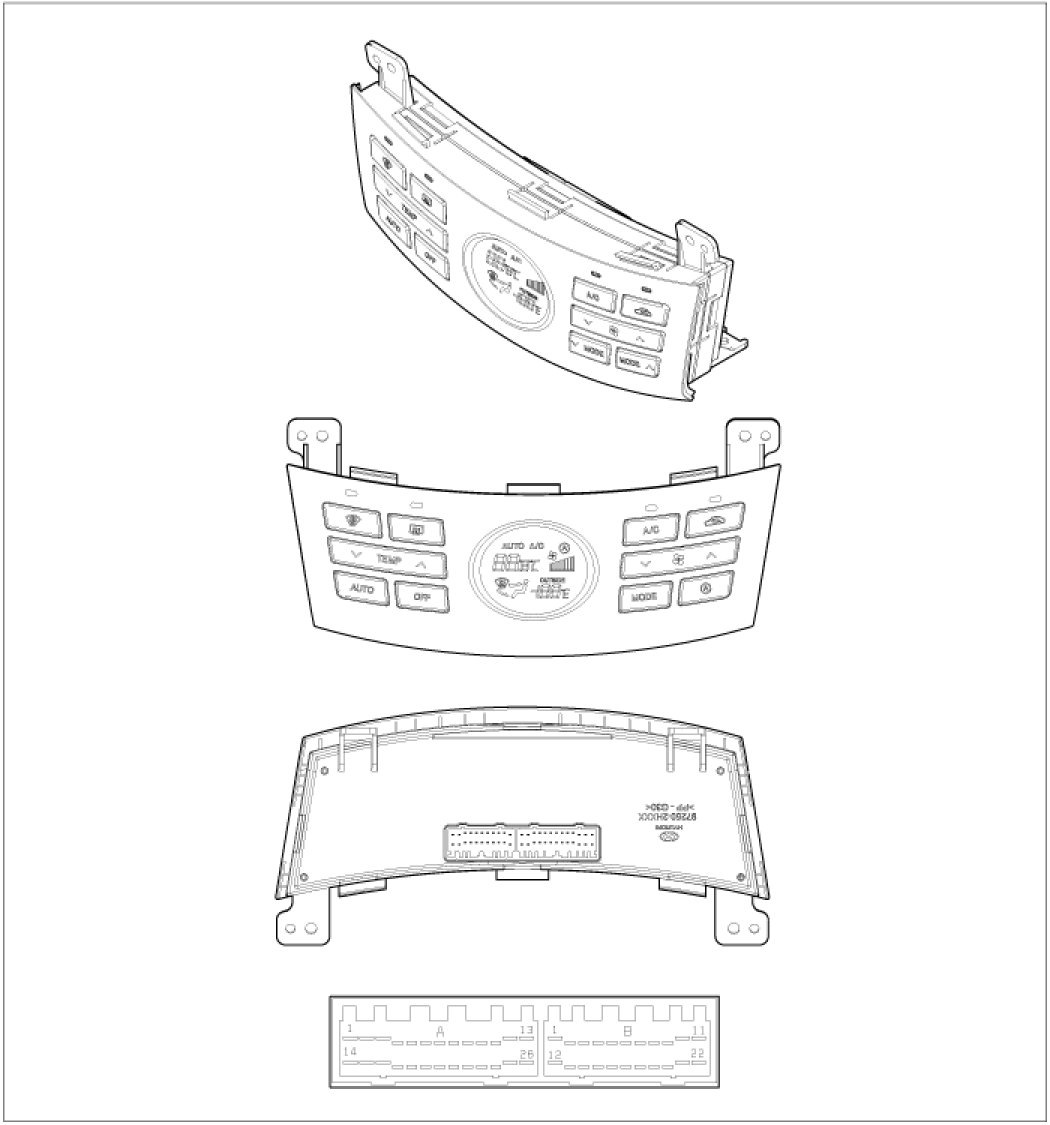

Component

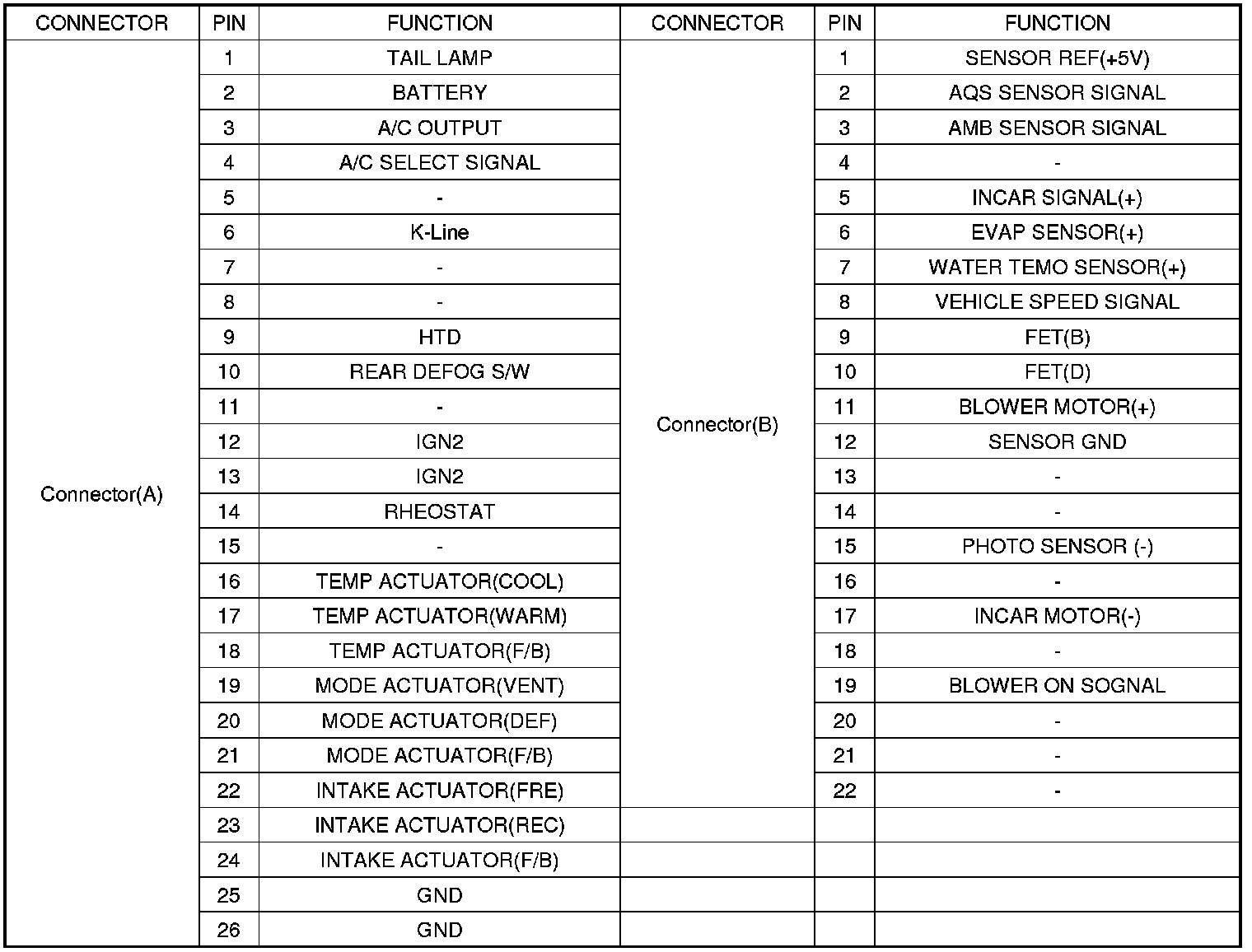

[CONNECTOR PIN FUNCTION]

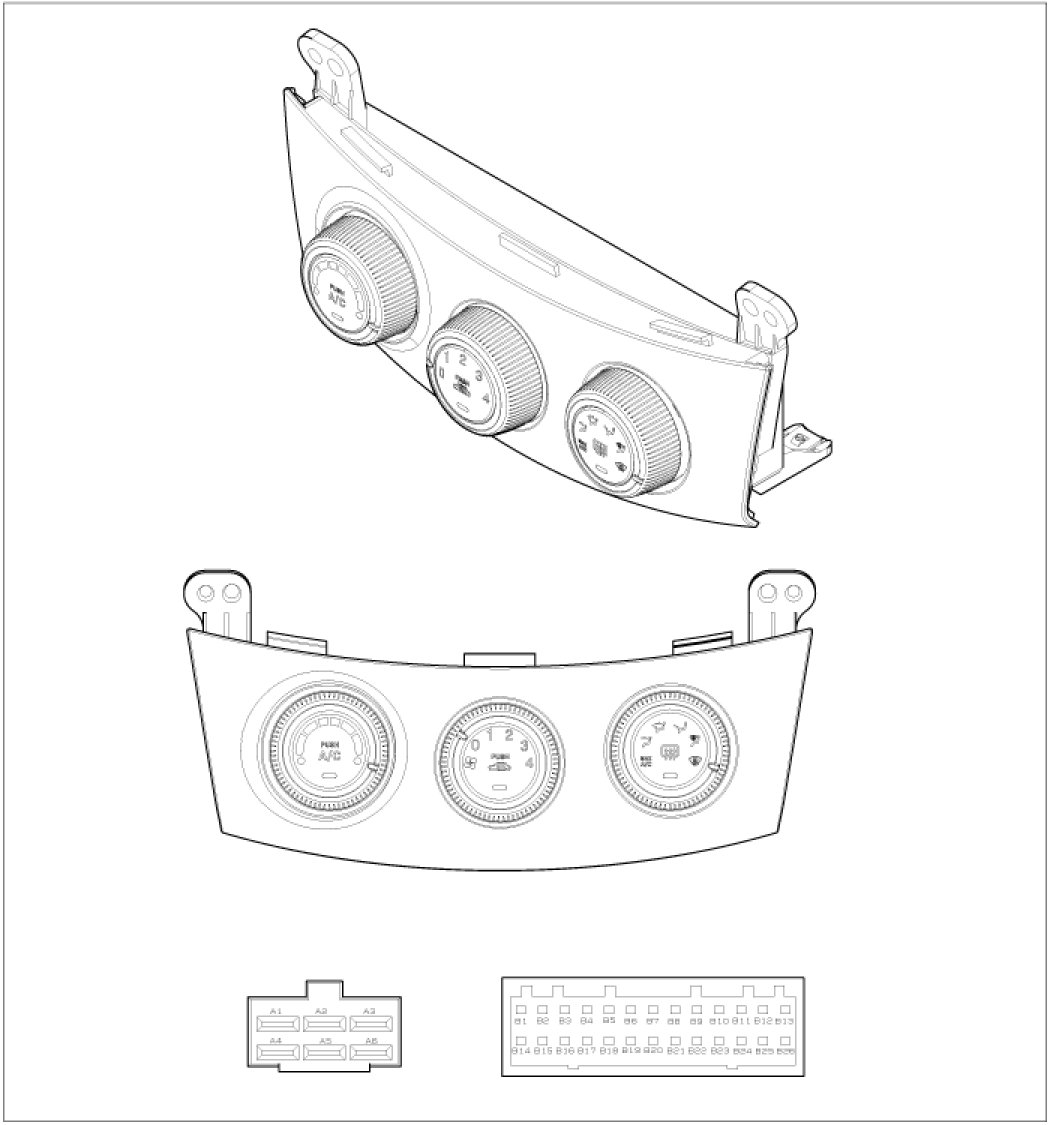

COMPONENT




[CONNECTOR PIN FUNCTION]
